The system is designed to install the Platea Pro glass/aluminium and all-glass 214x296 floodlights.
Urban lighting system intended for use with LED light sources.
Pole installation with single / double flange for ø 102 diameter poles; ø 120mm.

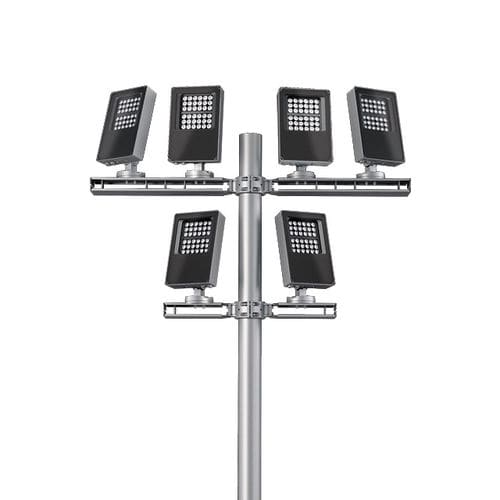

Pole installation with single / double arms for ø 102 diameter poles; ø 120mm.
Comprising an optical compartment (Platea Pro).
Optical compartment and frame in aluminium alloy; clear, colourless sodium-calcium tempered sealing glass, 5 mm thick (6 mm for all glass version);
Dual optical compartment adjustment.
Graduated scale and mechanical aiming lock.
Luminaire ready for pass-through wiring.
DALI driver compatible with remote management systems.
Common mode surge protection up to 10 kV. differential mode up to 6 kV.
An active control system changes the current intensity in order to maintain the lifespan of the LEDs even under extreme thermal conditions.
All screws used are in A2 stainless steel.
Colours available for MultiPlatea pole mounted
