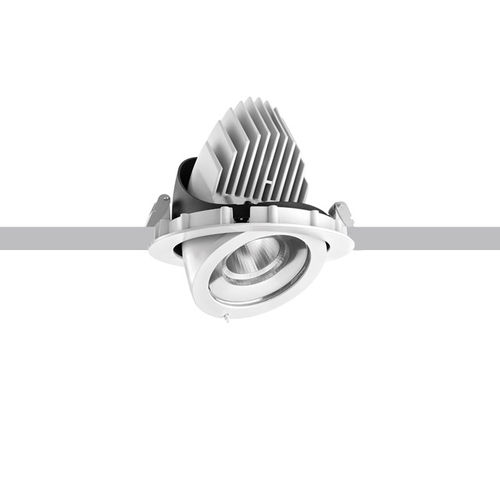

Recessed downlight PIXEL PLUS
LEDverticalhorizontal

Recessed downlight - PIXEL PLUS - iGuzzini - LED / vertical / horizontal
Recessed downlight - PIXEL PLUS - iGuzzini - LED / vertical / horizontal
Recessed downlight - PIXEL PLUS - iGuzzini - LED / vertical / horizontal - image - 2
Recessed downlight - PIXEL PLUS - iGuzzini - LED / vertical / horizontal - image - 3
Recessed downlight - PIXEL PLUS - iGuzzini - LED / vertical / horizontal - image - 4
Recessed downlight - PIXEL PLUS - iGuzzini - LED / vertical / horizontal - image - 5
Recessed downlight - PIXEL PLUS - iGuzzini - LED / vertical / horizontal - image - 6
Recessed downlight - PIXEL PLUS - iGuzzini - LED / vertical / horizontal - image - 7
Add to favorites
Compare this product

Characteristics

Type
recessed
Light source
LED
Shape
vertical, horizontal
Protection class
IP20, IP23
Interior/exterior use
indoor
Applications
commercial, home
Material
cast aluminum, thermoplastic
Color
white
Dimmable
dimmable
Style
contemporary
Number of lights
single
Other characteristics
orientable
Height

98 mm, 152 mm
(4 in, 6 in)

Power

14 W, 24 W, 27 W, 35 W, 42 W

Luminous flux

Max.: 2,525 lm

Min.: 1,609 lm

Color temperature

3,000 K, 4,000 K

Color rendering index (CRI)

80 unit

Description

-Recessed installation in false ceilings with 1 to 25 mm. -Die-cast aluminium body, thermoplastic material. -Double adjustability: internal (40°) and external (65°) with respect to horizontal plane with continuous friction; 355° rotation around vertical axis. -Versions with reflector with high luminous efficiency. -LED versions with high color rendering index >90.
