Hot water production solar kit INOX SOL 300 V2

forced circulation

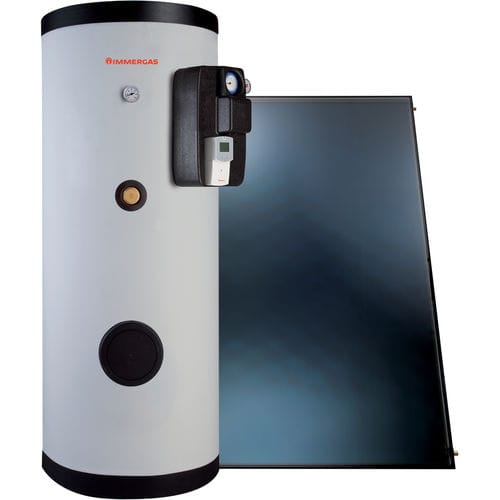

Solar pack with forced circulation with 2 CP4 XL Flat-Plate Collectors and 300 litre INOXSTOR Storage Tank Unit This solar pack, for the production of domestic hot water, includes as per standard: 2 CP4 XL Flat-Plate Collectors (2,52 m2 of gross surface) complete with 1 aluminium support frame for one vertically installed collector INOXSTOR 300 V2 litre stainless steel Storage Tank Unit for production of domestic hot water, insulated with stainless steel double coil including NTC probe for connection to Immergas boiler < 35 kW and brackets for installation of relative pump station. It's possible to mount directly on the storage tank the single low consumption pump station and the solar central unit . The use of this Storage Tank Unit involves the installation of an appropriately sized DHW expansion vessel and safety valve, not included in the supply. Single low consumption pump station with safety valve 6 bar and flow rate regulator (1-6 l/min) with relative connection kit Solar central unit with temperature probes (Storage Tank Unit and Collector) 18 litre expansion vessel with accessories Complete hydraulic fittings for mounting the collector ¾" adjustable thermostatic mixing valve 1 tank of 20 kg of premixed glycol 6 brackets for slates and tiles for planar installation on sloped roofs with relative fixing accessories
