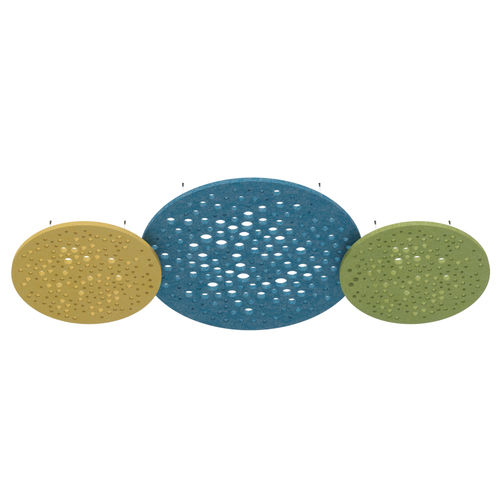

Ceiling acoustic panel BUBBLES

hangingPETround

Another take on the sophisticated round ceiling panel, this design includes round bubble-shaped perforations that contribute to an exciting and dynamic look. Layer sizes and colours to instantly inject new life into a low-budget project. ARCHISONIC® is a high-performance sustainable acoustic absorber made from up-cycled plastic bottles which is Cradle to Cradle certified and LEED accredited. ARCHISONIC® is manufactured at the highest quality standards, yet slight colour and surface deviations caused by the high degree of recycled fiber are an inevitable part of the product characteristics and do not claim warranty services. Material varies in colour when shown in monitor or in print. Please request a free material sample to verify colours. Material composition 100% PET (min. 60% post-consumer) Fire Test DIN EN 13501-1 B-s1, d0 ASTM E-84 Class A VOC emission CDPH 01350 Pass ISO 16000 (CDPH/EHLB/Standard Method V1.2.) EN 16516 Colour fastness EN ISO 105-B02, A1 Grade 6 Sound absoprtion DIN ISO 11654 24mm aw 0.55 (no airgap) aw 0.65 (50 mm / 2” air gap) aw 0.90 (100 mm / 4” air gap) aw 0.95 (200 mm / 8” air gap) aw 0.95 (300 mm / 11” air gap) 12mm aw 0.30 (no air gap) Material reutilisation Material Reutilisation ARCHISONIC® 24 mm: 88 plastic bottles/m2 ARCHISONIC® 12 mm: 53 plastic bottles/m2 Environmental Cradle to Cradle Certified™ Product qualifies for LEED v4 specifications on VOC emissions in LEED EQ credit(Low-emitting products) Supported by Climate KIC
