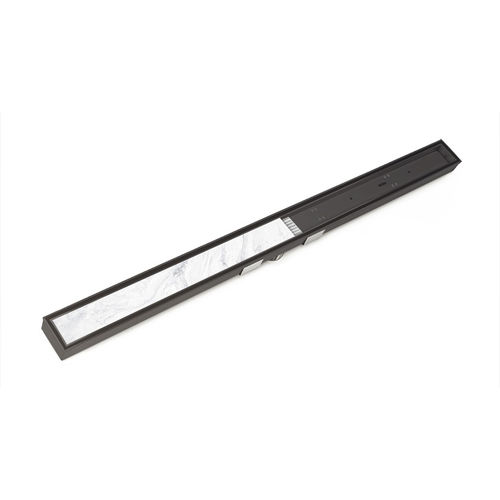

Stainless steel linear shower drain S-TIFAS 65

Site Sizable®: Modify length and locate outlet placement on site. - Site Sizable: Modify length and locate outlet placement on site - Waterproofing: PVC/Vinyl liner, Lead/copper pan, Hot mop, Rubber liner, Fiberglass - 12 gauge, 304 stainless steel tile-in top grate with stainless steel channel - Accepts flooring material up to 3/4" in thickness - Overall width: 2-7/8", Min. height above waterproofing: 1-3/4" - Capacity: 9 gallons per minute per outlet. Additional outlets may be added to increase flow rate. - Requires 2" clamp down floor drain with 2" throat (strainer size). Not included in complete kit.
