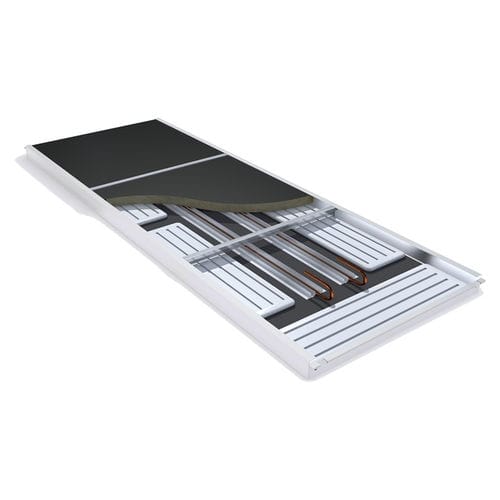

The NEXT HYBRID® system is a hybrid system patented by Integra that uses INTEGRA meanders with integrated air supply and is able to store energy in phase transition material (PCM) and / or the concrete mass. The system can be used as an island or closed ceiling system.
Smaller dimensions of the energy generation installation.
Smaller dimensions of the energy transport system
Integrated ventilation system reduces bacterial pollution and CO2 concentrations
Suitable for constant and variable volume systems.
Less energy loss in the plenum
Results in lower EPC values.
High cooling capacity (70-200 W / m2)
High heating capacity (62-150 W / m2)
Heating - 45-115 W / m2
Cooling - 65-105 W / m2
Ventilation - 4 - 10 m³ / (h.m2) (NEN-EN-15251)
Lights - 500 LUX at the workplace (NEN-EN-12464-1)
Tolerance B. - 45% of allowed deflection (NEN EN-13964: 2014 / TAIM)
Low CO2 - ppm
aW - 0,8 (ISO-11654)
NRC - > 0,8 (ASTMC 423)
Dn, f, w - (C; Ctr)> 46 dB (ISO717—1: 2013)
Sound pressure - Lp (A) <32 dB (A)
