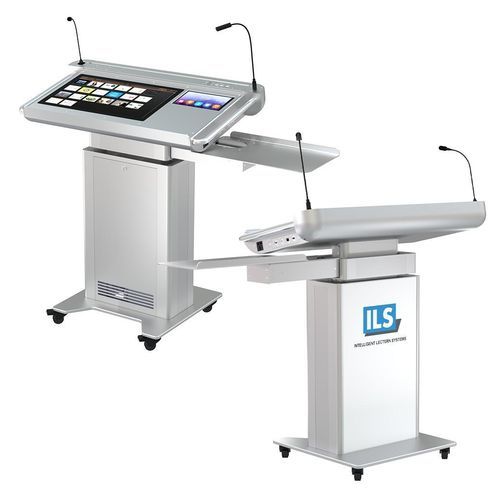

Conference lectern SYNERGY QW-FD

with USB portwith integrated computerheight-adjustable

Overview
ILS lecterns include front logo engraving, integrated AV options and front display solutions. The Synergy QW-FD offers a flush 24" 10‑point touch monitor with an integrated top PC option and an optional 32" front display with Android media player. The unit provides lockable storage for up to three half‑rack devices and a machined aluminium casing and pedestal designed for long service life.

Operation and layout
The lectern features motorised height adjustment (40 cm range) to present comfortably from the user side. The top is split into two zones: left with the flush 24" touch display, right for notes or an optional control panel (supports up to 10" panels). Laptop connectivity is provided via four user‑definable Neutrik‑style sockets. Charging cables (USB‑C, Lightning, micro‑USB), one or two microphone shock mounts, a reading light and an optional microphone mute button are available. The unit is fitted with lockable castors (50 mm Ø standard; 75 mm Ø option for thick carpet).

Recommended use

• Conventions
• Corporate events
• Training rooms
• Universities

Technical specifications

• Dimensions: Top 103 cm × 54.5 cm; Side plate 43 cm × 29.5 cm; Top + Side plate 143 cm
• Height (user side): 95 cm–135.5 cm; (audience side): 107.5 cm–147.5 cm
• Weight: 110 kg
• Monitor: 24" 10‑point capacitive touchscreen; Front display: 32" Iiyama ProLite Full HD with Android player
• PC options: MFF PC (Dell OptiPlex, HP Mini, Lenovo Tiny)
• Height adjustment: Motorised Wide Pillar, 40 cm range

Integration

• Display & PC: 24" touch monitor; MFF PC options; 32" front display with Android player integrated in ILS profiles

Accessories

• Audio: 1 × AKG CGN 99 microphone
• Light: 1 × LITTLITE LED BNC lamp

Features

• Micro PC installation inside working surface
• Extra space to the right of the display for laptop or notes
• Ultra‑wide phone/tablet holder
• Motorised height adjustment (40 cm)
• 3 × control buttons (2 × height; 1 × light)
• Optional microphone mute button
• 1 × sliding table (right)
• 4 × lockable smart castors or sideway rollers

Connectivity

• Top dashboard: 1 × 3‑pin XLR shock mount for microphone; 1 × BNC light socket (12 V); 2 × USB 3.0; 3 × charging cables (USB‑C, Lightning, micro USB); ultra‑wide tablet holder
• Side connectivity: Laptop connectivity via 4 × Neutrik sockets (type on request); 1 × AC power socket
• Bottom cabling: External display output 1 × HDMI; 1 × CAT6 LAN; Microphone output: XLR per microphone; laptop cable passthrough or outputs from integrated AV gear; 1 × AC power input
