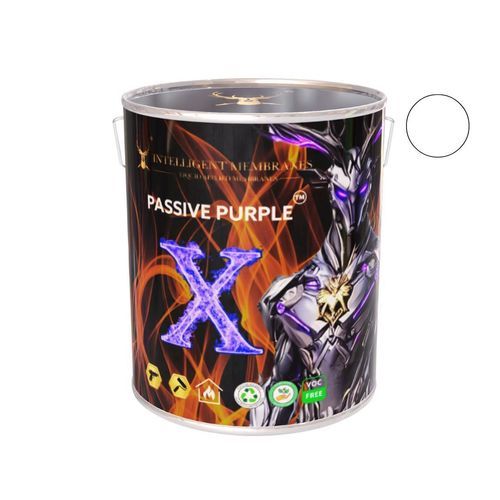

Leak-proofing paint PASSIVE PURPLE X
protectiveindooroutdoor

Leak-proofing paint - PASSIVE PURPLE X - Intelligent Membranes - protective / indoor / outdoor
Leak-proofing paint - PASSIVE PURPLE X - Intelligent Membranes - protective / indoor / outdoor
Add to favorites
Compare this product

Characteristics

Function
protective, leak-proofing
Location
outdoor, indoor
Application
wall, for facade, for insulation panel
Support
for wood, for concrete, for bricks
Component
water-based
Finish
matte
Options
quick-set, VOC-free, fire-resistant
Number of coats
two coats
Ecological characteristics
VOC-free

Description

Product overview
  • Passive Purple X 10 kg is an airtight, vapour-control coating designed for fire-conscious façades and substrate protection. Applied by airless spray or roller; available in White, Purple, Black and Cream.

Excelling characteristics
  • Fire class B
  • Raintight while vapour-breathable
  • Airtight membrane
  • UV resistant
  • Anti-fungal treatment
  • Self-cleaning / reduced dirt pickup from UV netting
  • Crack-bridging capability
  • Carbonation blocking and realkalising properties for concrete
  • Protection against salts for concrete in road/transport environments
  • Can be used as protective anti-carbonation coating on concrete
  • Suitable for internal and external applications
  • Smoke tight
  • Allows substrate vapour diffusion while ensuring airtightness
  • Intelligent moisture management

Tested & Certified — fire-rated, watertight & breathable
  • Reaction to fire: Euroclass B-s1,d0 (EN 13501-1, on A1 substrates ≥653 kg/m³) and ASTM E84 Class A (Flame Spread 0 / Smoke 15)
  • Watertight: Watertight Class W1 (EN 13859-2) & water permeability Class W3 (EN 1062-3); near-zero water absorption (EN 16302)
  • Breathable / vapour-open — Sd ≈ 0.6 m (EN ISO 12572)
  • Crack-bridging: A3 (23°C) / A4 (-10°C) (EN 1062-7) & CO₂ / carbonation barrier Class C1 (EN 1062-6)
  • UV-stable (strength increases after 500 h UV); low-emission EMICODE EC2; anti-fungus (rating 0)
  • Kiwa BDA Agrément (BAW-21-214-P-A-UK); Passive House component (phB); US ICC-ES AC212 water-resistive barrier

Why choose Passive Purple X?
  • Efficient application — with an airless spray device a single operator can cover up to ~300 m² of façade protection; rapid two-coat process
  • VOC-free — water-based, no added volatile organic compounds
  • Application methods — airless spray (e.g. Graco) or roller
  • External protection — forms a watertight vapour-control membrane with UV resistance
  • Fire rated — Class B reaction to fire
  • Breathable — permits vapour release while maintaining airtightness
  • KIWA approved and listed certifications

Uses & directions of use
  • Substrates: insulation panels, concrete and masonry, fibre cement boards, engineered wood/OSB panels
  • Surface preparation: remove salt efflorescence, dust, loose parts and standing water
  • Fill holes and joints with fast-setting cement-based product or polyurethane foam as required
  • Apply at substrate temperature T < 5°C (observe substrate temperature considerations)
  • Application permitted on humid surfaces if standing water is removed
  • Do NOT add water or solvents
  • Do NOT apply in direct full sunlight
  • Do NOT apply during rain
  • Apply two coats (spray or roller); allow first coat to dry before applying second
  • Clean tools with water after use

Technical data (summary)
  • Usage: External or Internal
  • Applied by: Roller or Spray (airless)
  • Colours available: Purple, Black, Cream, White
  • Size / Packaging: 10 kg container
  • Certification summary: BS Fire Class B; ASTM (E84) Class A; KIWA BDA Agrément; Passive House component; US ICC-ES AC212
  • VOC: Water-based, VOC-free

Related guides & references
  • Airtight and Vapour Control for High-Rise Re-Cladding
  • The Airtightness Challenge: Why Blockwork Alone Is No Longer Enough
  • How to Retrofit Vapour Control Without the Mess

Characteristics / technical specifications
  • Model name: Passive Purple X
  • Fire rating: Euroclass B-s1,d0 (EN 13501-1) and ASTM E84 Class A
  • Watertight classification: Class W1 (EN 13859-2); water permeability Class W3 (EN 1062-3)
  • Breathability: Sd ≈ 0.6 m (EN ISO 12572)
  • Crack bridging: A3 (23°C) / A4 (-10°C) (EN 1062-7)
  • Carbonation / CO₂ barrier: Class C1 (EN 1062-6)
  • Anti-fungus: rating 0
  • EMICODE: EC2 (low emission)
  • Application methods: Airless spray or roller; two coats
  • Container size: 10 kg
