Child's playground spinner INTEGRADO : YUGO 2

for playgrounds

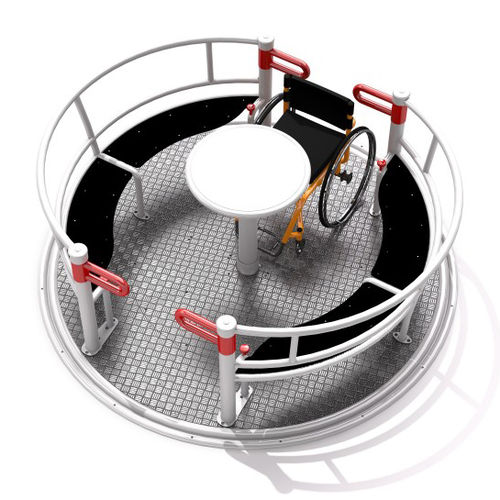

Wheelchair roundabout made of galvanized steel, designed for disabled people. Roundabout can accommodate, two wheelchair users or four people, on four seats at the same time. Each person inside roundabout can move or stop it using a round circle in the middle of the roundabout. Playground device has two gates. A special protection system is mounted inside carousel to provide the most secure way to use the product. The carousel won't start with open gates. It is possible to move the carousel once the gates are closed. It is possible to open gates by the person stay inside, by using one of the red handles which are located next to gates. Inside roundabout is mounted centrifugal brake system which protected that device is not moving too fast. Color of construction is grey, color of seats in black, color of gates is red. Wheelchair roundabout is made of galvanized steel and powder painted. Materials Construction made of galvanized steel and powder painted with pipes 60,30 x 2,90 mm, 101,30 x 7,10 mm and profile 50,00 x 40,00 x 3,00 mm and metal plate 6,00 mm. Platform made of aluminium plate 3,00 mm. The seats made of PE plate 10,00 mm. Carousel bearing: ball and thrust bearing system.
