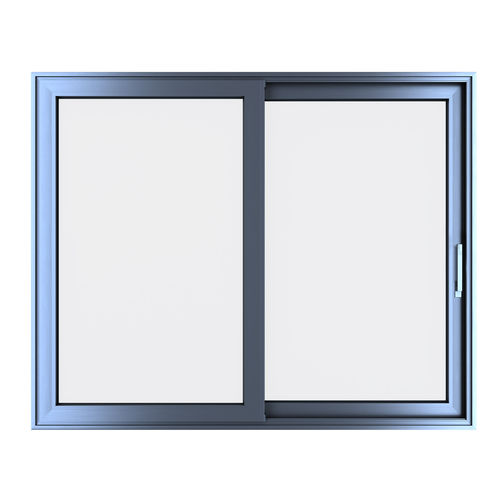

Aluminum sliding system S 50

glass doorconcealed runner

S 50 system is a new generation lift & slide system. The system could be produced up to 3,0 m wide and 3,3 m high with 120 mm profile depth. S 50 system has 400 kg loading capacity and compatible with the new generation fenestration system DS. S 50 thermal insulated lift & slide fenestration system can be used together with all conventional mechanisms and can be also applied with the espagnolette mechanism and diverse lift&slide mechanisms. The new generation Bodrum handle family brings elegant look to the system. In addition to S 50 system, S 50 H system option suitable to apply especially on villa projects. Water Tightness E 1200 (1200 Pa)*3 Resistance to Wind B2 - 1200 Pa Thermal Transmittance Coefficient Uw: ? 2,58 W/m2K / Ug: ? 1,4 W/m2K Air permeability Class 4 (600 Pa)
