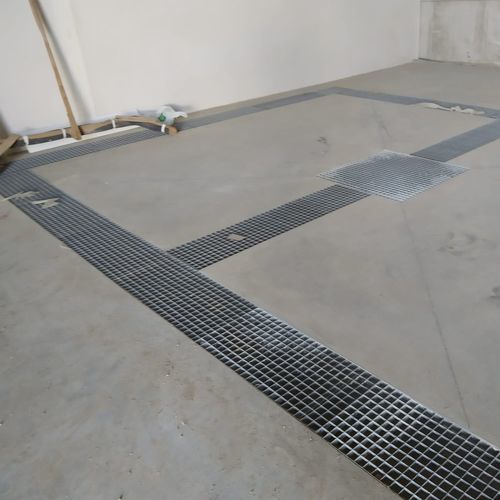

Stainless steel grating for drain channel for homepatiofor balcony
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
- Application
- for industrial applications, patio, for parking lot, for home, for building, for balcony
Description
Description
Variants and indicative prices (examples by width)
Options
Characteristics / technical specifications
- Stainless steel gratings, standard length 1000 mm.
- Widths available in stock: 100 mm to 500 mm.
- Sold alone (without frame) or supplied with a stainless steel support frame.
- Frames are made of 2 longitudinal profiles joined at the bottom by 2 flat plates that act as anchoring claws for installation concrete. Total element length: 1000 mm.
- Anti-slip, anti-heel, special dimensions or enhanced load-resistance versions available (technical details depend on chosen variant).
Variants and indicative prices (examples by width)
- 100 mm (1000 × 100 × 20 mm) — Without frame: €53.18 (SKU RTI102, variation_id 10200). With frame: €80.87 (SKU CTI102, variation_id 10202).
- 120 mm (1000 × 120 × 20 mm) — Without frame: €66.05 (SKU RTI122, variation_id 10204). With frame: €93.74 (SKU CTI122, variation_id 10206).
- 130 mm (1000 × 130 × 20 mm) — Without frame: €71.37 (SKU RTI132, variation_id 10208). With frame: €99.33 (SKU CTI132, variation_id 10209).
- 150 mm (1000 × 150 × 25 mm) — Without frame: €77.28 (SKU RTI152, variation_id 10210). With frame: €108.28 (SKU CTI152, variation_id 10211).
- 200 mm (1000 × 200 × 25 mm) — Without frame: €90.79 (SKU RTI202, variation_id 10212). With frame: €122.85 (SKU CTI202, variation_id 10213).
- 250 mm (1000 × 250 × 25 mm) — Without frame: €106.35 (SKU RTI252, variation_id 10214). With frame: €139.47 (SKU CTI252, variation_id 10215).
- 300 mm (1000 × 300 × 25 mm) — Without frame: €136.78 (SKU RTI302, variation_id 10216). With frame: €164.13 (SKU CTI302, variation_id 10217).
- 400 mm (1000 × 400 × 25 mm) — Without frame: €170.49 (SKU RTI402, variation_id 10218). With frame: €204.59 (SKU CTI402, variation_id 10219).
- 500 mm (1000 × 500 × 25 mm) — Without frame: €207.68 (SKU RTI502, variation_id 10220). With frame: €249.22 (SKU CTI502, variation_id 10221).
Options
- Choice: gratings only (no frame) or gratings with stainless steel support frames.
- Heights available by width: 20 mm (for smaller widths such as 100–130 mm) or 25 mm (for widths ≥150 mm).
Characteristics / technical specifications
- Material: stainless steel.
- Standard length: 1000 mm.
- Available widths: 100 mm, 120 mm, 130 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm, 500 mm.
- Heights: 20 mm (for some widths), 25 mm (for others).
- Variants: available with or without support frame (frame composed of 2 longitudinal profiles + 2 bottom plates for concrete anchoring).
- Example SKUs: RTI102 / CTI102 (100 mm), RTI122 / CTI122 (120 mm), RTI132 / CTI132 (130 mm), RTI152 / CTI152 (150 mm), RTI202 / CTI202 (200 mm), RTI252 / CTI252 (250 mm), RTI302 / CTI302 (300 mm), RTI402 / CTI402 (400 mm), RTI502 / CTI502 (500 mm).
- Dimensions per variant: 1000 × width × height (mm).
- Weight: N/A.
- Product type: variable product with multiple width and frame options.
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
