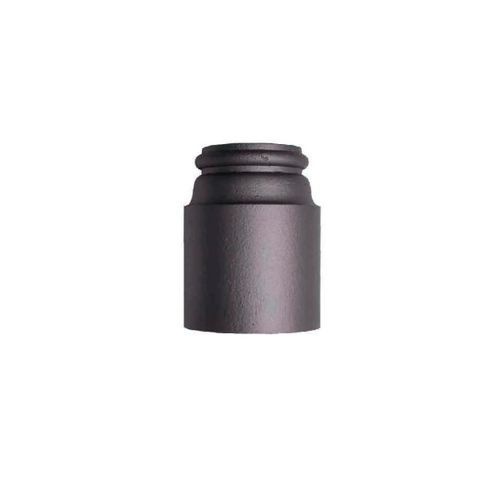

Precast column base plate DEC001

Dimensions and weight Max diameter mm. 200, height 260 mm, thickness constant 8 mm, upper hole 130 mm. Weight 9 kg Compliance Suitable for mounting on cylindrical tubes with a diameter of 127 mm. Materials Made of EN-GJL-200 gray lamellar cast iron (UNI EN 1561). Element structure Molded base with a circular plan, made entirely in cast iron casting. The element is supplied with M6 120° holes with grub screws in stainless steel. Oxidation protection Protection from oxidation is obtained through a technological cycle for re-sandblasting, a coat of single-component primer with zinc, a coat of two-component zinc phosphate primer, an immersion coat of alkyd resin-based primer, two coats of two-component paint.
