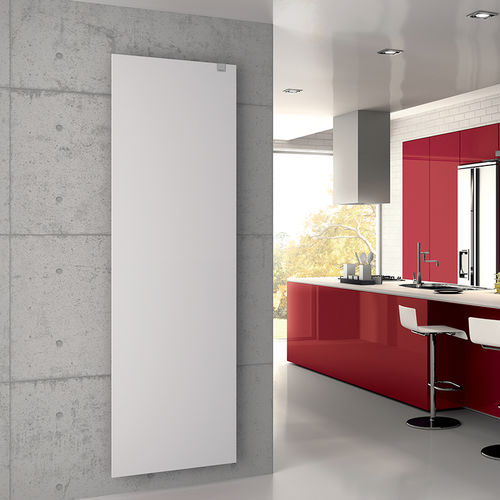

Hot water radiator RELAX POWER
electric751 w...1000 w1001 w...1500 w

hot water radiator
hot water radiator
hot water radiator
hot water radiator
hot water radiator
hot water radiator
hot water radiator
hot water radiator
Add to favorites
Compare this product


Characteristics

Type
hot water, electric
Power
751 w...1000 w, 1001 w...1500 w, 501 w...750 w, 0...500 w
Style
contemporary
Finish
metal
Color
customizable color
Installation
wall-mounted
Orientation
vertical
Configuration
rectangular
Room/use
for living rooms, for kitchen
Other characteristics
radiant panel, low-temperature
Width

Max.: 1,401 mm
(55.2 in)

Min.: 381 mm
(15 in)

Height

688 mm, 868 mm, 1,663 mm, 1,963 mm, 2,163 mm
(27.1 in, 34.2 in, 65.5 in, 77.3 in, 85.2 in)

Depth

48 mm
(1.9 in)

Weight

Max.: 37.3 kg
(82.23 lb)

Min.: 19.3 kg
(42.55 lb)

Description

Essential design, precise lines, integrated forms, silent elegant, and guaranteed comfort. The first front plate model vaunts completely invisible connections: just one uninterrupted surface without frills or extra coverings that guarantee clean and soberly elegant aesthetics. High performance with low-temperature systems is also guaranteed, as well as adaptability for substitutions with the Renova model, Relax offers itself as the “universal” radiator with a high content of IRSAP industrial design, the result of its own research and development. The wide range of colors and finishes makes the Relax range easy to coordinate, insert into the décor scheme, and personalize and enhance every interior through its discreet presence. The assembly procedure developed to simplify hydraulic connections wins the admiration of installers by being completely safe and easy. radiating panel thread pitch of 50 mm, M24 x 19 maximum working pressure 10 bar maximum working temperature 95°C this radiator is already fitted for the insertion of the optional thermostat head Essential design, decided lines, shapes that integrate and become successful, thanks to the refined finishes, this is the true character of Relax. The assembly procedure developed to simplify hydraulic connections wins the admiration of installers by being completely safe and easy.
