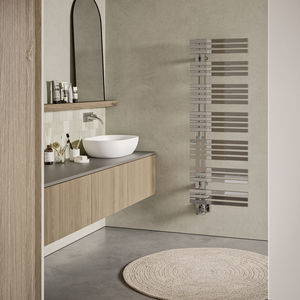

Minuette, Hight 596 mm, Lenght 540 mm, Chrome-plated
MINUETTE Stainless Steel towel warmer. Available in the following finishes: Chrome-plated, Gold, Brushed Bronze, Brushed Copper and Satin Nickel.
stainless brass towel warmer
horizontal tubes 30 mm diameter
side manifolds 30 mm diameter
1/2” Gas right threading
maximum working pressure 15 bar
maximum working temperature 95°C
• 2 pcs Elbow-type design valve fitting 1/2” connection thread on the radiator’s manifold; • 2 pcs 15 mm copper tube connection kit; • 2 pcs 1/2” M eccentric tube, to suit the 15 mm valve copper connection, complete with wall cover to hide the pipe fittings; • 2 pcs wall bracket matching radiator’s colour/finishing • 1 pcs air-vent valve • 1 pcs blind plug
The Colors used in this folder are not considered binding. The different technological painting processes and the materials used for the realization can not have a perfect color match with the delivered product. Irsap company reserves the right to introduce at any time whatever modifications necessary to the improvement of the product.
Norms for correct installation :
The radiators must only be installed using IRSAP fittings with white silicone seal rings;-Only fit TESI batteries with IRSAP nipples and IRSAP white silicone seal rings;-IT IS ABSOLUTELY PROHIBITED TO USE HEMP; A 5/6 Kgm torque wrench setting must be applied to
IRSAP plugs and reducing bushes with white silicone seal rings on TESI radiators; -We recommend using the IRSAP non-scratch universal spanner to assemble the fittings;-DO NOT CONNECT THE RADIATORS TO THE DOMESTIC WATER AND SANITARY SYSTEM;
