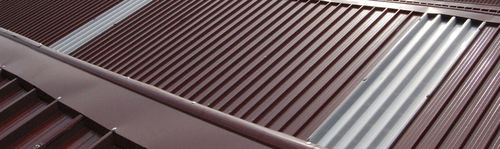

Galvanised steel roofing panel DELTA 5

polyurethaneinsulating

Dimensions width mm 1000. Length length upon request from continuous production process. Thicknesses (S) mm 30 - 40 - 50 - 60 - 80 - 100 - 120 - 140 panels of non standard thicknesses can be supplied upon request previous agreement on minimum quantities. Supports galvanized steel, galvanized prepainted or plastified steel; stainless steel; natural or prepainted aluminium; copper. Insulation through continuous foaming process of Polyurethane resins (PUR) and polyisocianurate foams (PIR), density 39 ±2 Kg/m³ Declared value of thermal transmittance for a panel after 25 years of its installation, (Appendix C - EN 13165) Initial value of thermal conductivity: λ = 0.020 Protective treatments for external support available on request for external polyester coating, atoxic pre-painted for food contact, silicone polyester, PVDF, thermoplastic Class A application of PVC plastic films or other films.
