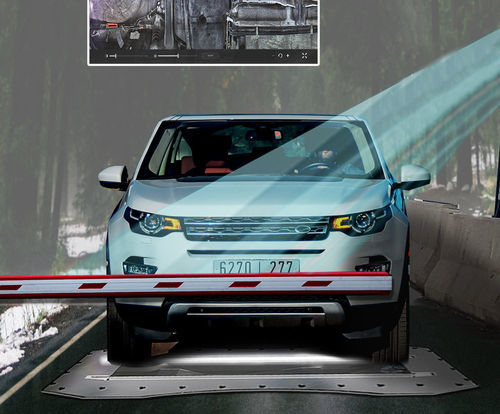

Optical scanner UVIS-R 2020

white lightphotogrammetry3D

Summary
Used in more than 30 countries, the UVIS-R 2020 enables automatic detection of anomalies.
With its 5 Ultra HD cameras, the UVIS-R 2020 reconstructs the vehicle undercarriage in 3D, including the most difficult-to-access areas, without stopping the vehicle.

Properties

• Scanner that does not require vehicle stop
• Ideal for high-security facilities with heavy traffic
• Vehicle presence and width detection, single or multi-image, side-by-side comparison mode
• True color Ultra HD composite image
• Inspection ramp made of aerospace-grade aluminium – sapphire glass
• 5 digital cameras
• 30 high-intensity dynamic LEDs
• Storage capacity: 150,000 vehicles

Specifications

• Dimensions: 206 x 28 x 26 cm
• License plate recognition front and rear, with alarm
• Complete automatic detection program
• Multiple viewing angles via full-color prismatic cameras
• Control by i7 processor, 8 GB RAM, 500 GB storage
• Storage capacity: 150,000 vehicles
• Options: LPR (license plate recognition), FOD (foreign object debris detection), MFD (magnetic field detection), VRAS (vehicle record archive system), air debris removal system, training, warranty extension

Technical characteristics / specifications

• Model: UVIS-R 2020
• Number of cameras: 5 Ultra HD / digital cameras
• 3D reconstruction of chassis without vehicle immobilization
• Viewing angles: multiple angles via full-color prismatic cameras
• Imaging: true color Ultra HD composite image
• Illumination: 30 high-intensity dynamic LEDs
• Inspection ramp: aerospace-grade aluminium, sapphire glass
• License plate recognition: front and rear (LPR) with alarm
• Storage capacity: 150,000 vehicles
• Control / central unit: Intel i7 processor, 8 GB RAM, 500 GB storage
• Physical dimensions: 206 x 28 x 26 cm
• Detection functions: vehicle presence and width detection, automatic anomaly detection, side-by-side image comparison
• Available options: LPR, FOD, MFD, VRAS, air debris removal system, training services and warranty extension
