Pitched roofing sheet ROYALWAVE

acrylicroof tile look

Product overview

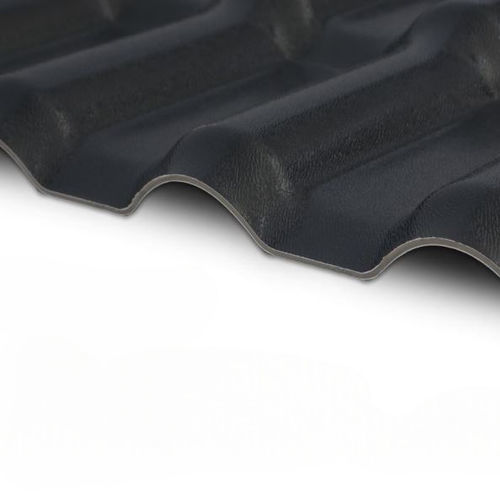

Corrugated roofing sheet Royalwave 1000-900-40 is a co-extruded, multi-layer ASA roofing profile with 6 waves designed for exposed roof and cladding applications. Available in three thicknesses and multiple lengths, it provides extended UV stability and wide temperature tolerance.

Key technical specifications

• Product name: Royalwave
• Reference: 1000-900-40
• Number of waves: 6
• Thickness options: 2.5 mm, 3.0 mm, 3.5 mm
• Layer reinforcements: 4 layers (co-extruded)
• Width: 1000 mm
• Net coverage: 900 mm
• Recommended purlin spacing: 75 cm
• Available lengths: from 1 m to 7 m
• Weight per m2: 2.5 mm = 5 kg/m2; 3.0 mm = 6 kg/m2; 3.5 mm = 7 kg/m2

Performance & compliance

• UV resistance: Acrylic ASA, tested to ISO 4892-2 (CYCLE1, 144DH) — PASS
• Temperature range: -40°C to +70°C
• Thermal conductivity (insulation): 0.030927 W/m·K (sandwich panel grade)
• Flammability: UL94 (Class B), 5VA
• Sound insulation: up to 97%
• Weatherability: weather-resistant Acrylic ASA suitable for long-term outdoor exposure
• Certificates: ISO 9001, ISO 14001, CE (CQ-CE-22.02)

Applications & installation guidance

• Typical uses: industrial and commercial roofing, cladding, canopies, agricultural buildings, covered walkways
• Purlin support: recommended spacing 75 cm; verify local load and wind requirements
• Installation lengths: supplied from 1 m to 7 m to reduce on-site joints
• Compatibility: suitable for direct exposure to sunlight due to ASA outer layer

Ordering & options

• Thickness choices: 2.5 / 3.0 / 3.5 mm
• Lengths: configurable from 1 m to 7 m; specify required length at order
• Provide reference 1000-900-40 and desired thickness when requesting quote or sample
• Contact supplier for color options, cut-to-length services and certification copies
