Welded mesh fencing BARBICAN®

residentialcommercialindustrial

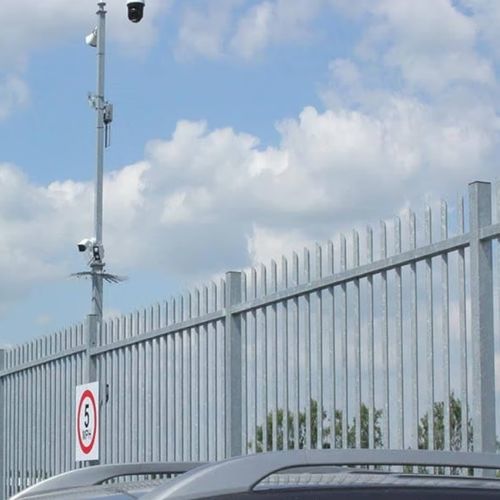

Barbican® features our welded pale-through-rail construction which means there are no bolts to be forced or pales to be removed. The horizontal rails are sleeved on to the upright posts to provide a seamless design that is both stylish and incredibly strong. Barbican® Fencing correspond(s) to the generic component/material "steel" in the BRE Global Guide online generic specification(s) "Galvanised steel railings" which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education. 25 year service life guarantee Barbican® panels are up to 3000mm high and have two horizontal hollow sections rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres (96mm gap between pales). The tops of pales are cut at 45 degrees and left open as standard to form a point. We manufacture matching single and double leaf gates for this product, with a range of opening actions and manual and automatic operating options. Standard Finishes Hot dip galvanised to BS EN 1461 as standard Hot dip galvanised and powder coated to BS EN 13438 in one of our standard colours at extra cost Powder coating to non standard BS or RAL to special order Marine coating for applications near sea water (optional extra) Explore our finishes below Post Options Overlength set in concrete as standard Baseplated to bolt down onto concrete Cranked to suit wall mounting
