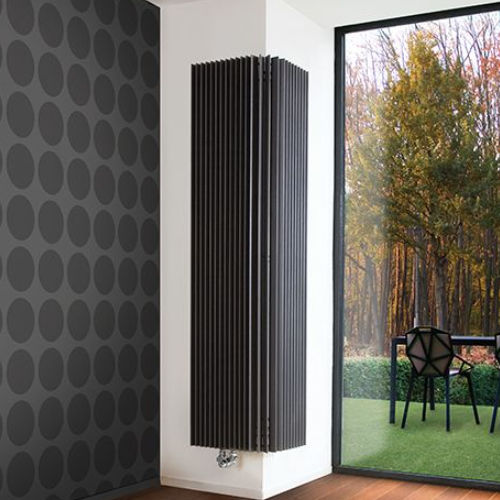

Hot water radiator IGUANA ANGULA PLUS

751 w...1000 w1001 w...1500 w501 w...750 w

The symbol of beautiful sunshine Warmth with symbolic value. Inspired by a child's drawing of the brightly shining sun. A radiator around the corner. Great capacity in a small space. A special solution, both energy-wise and aesthetically! Material Consists of vertical triangular steel radiation pipes, welded on steel positioning brackets. The radiation pipes are hydraulically connected using steel bends. Folded steel side covers are connected to the two sides by magnets. Suitable for central heating. Finish The radiators are sandblasted, degreased, phosphated, electrostatically lacquered with epoxy-polyester powder and finally stove enamelled at 200 °C or painted with epoxy polyester and enamelled at 180°C depending on the colour chosen by the customer. The side covers are done according to the same steps starting from the degreasing. This high quality finish offers an optimal scratch resistance and is very easy to maintain. Thickness of the lacquer: min 80 μ Pressure test: 9 bar Working pressure: 6 bar Colour The radiator and side covers are lacquered in the colour sandblast grey metallic 001 / white (RAL 9010) / white (RAL 9016) / other Iguana Angula Plus The Iguana Angula consists of triangular vertical radiation pipes welded on steel positioning brackets. The radiation pipes are hydraulically connected by means of steel bends, and are placed at an angle next to each other. Suitable for central heating. Supplied with wall brackets and 2 air vents G 1/8”. Central connection with distance of 50mm, standard for 2 pipe. Single pipe system is possible with a valve. Options All options have the same radius as the radiator.
