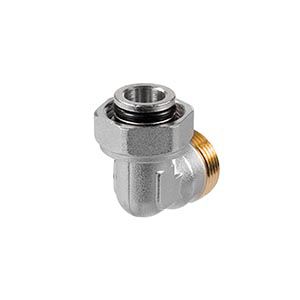

Mechanical thermostatic valve JAGA MULTI-H
manualfor radiator2-way

Mechanical thermostatic valve - JAGA MULTI-H - JAGA - manual / for radiator / 2-way
Mechanical thermostatic valve - JAGA MULTI-H - JAGA - manual / for radiator / 2-way
Mechanical thermostatic valve - JAGA MULTI-H - JAGA - manual / for radiator / 2-way - image - 2
Mechanical thermostatic valve - JAGA MULTI-H - JAGA - manual / for radiator / 2-way - image - 3
Add to favorites
Compare this product
Go to the JAGA website for more information

Characteristics

Type
mechanical
Function
manual
Application
for radiator
Other characteristics
2-way, male, threaded
Installation
floor-standing, wall-mounted
Color
silver-colored

Description

Overview
  • Integrated automatic flow limiter independent of differential pressure
  • Quick flow sizing without complex calculations
  • Continuously balancing TRV range 1 (20 l/h) to 8 (340 l/h)
  • Connection: 3/4" Eurocone male thread
  • Type: 2-pipe radiator valve
  • Central connection for wall or floor mounting
  • Valve reversible: can be fitted left or right
  • Flow direction independent from thermostatic head position
  • 100% closable for shut-off
  • Screw thread M30 x 1.5 for thermostatic head
  • Keymark certified; tested to DIN EN 215
  • Synthetic spindle protection for on-site setting


Settings
  • Illustrated valve setting options available for wall and floor installation


Code
  • 5094 4423 (nickel-plated)


Installation notes
  • Central connection compatible with wall or floor piping
  • Valve body reversible for left or right installation
  • Flow direction left/right independent from thermostatic head position


Technical specifications
  • Model: Multi-H
  • Brand: Jaga
  • Connection: 3/4" Eurocone male thread
  • Thread on thermostatic side: M30 x 1.5
  • Type: 2-pipe radiator valve
  • Flow control: integrated automatic flow limiter, independent of differential pressure
  • TRV balancing range: 1 (20 l/h) to 8 (340 l/h)
  • Shut-off: 100% closable
  • Mounting: central connection to wall or floor; valve reversible left/right
  • Protection: synthetic spindle protection for on-site setting
  • Approvals / Standards: Keymark certified; tested to DIN EN 215
  • Finish / code: nickel-plated (code 5094 4423)
