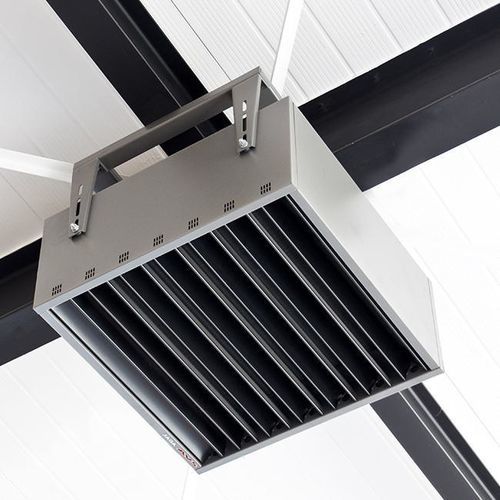

Ceiling-mounted fan coil AVS®

Overview
The Jaga AVS Unit Heater is a hydronic unit heater designed for large-volume commercial and industrial spaces such as production halls, sports centres, warehouses, garages and department stores. It combines a slim-line front panel with an aluminium grille and the Jaga Air Venturi System to ensure rapid, even air distribution.

Key benefits

• Air Venturi System blends heated air with ambient air for faster warming and improved distribution.
• Optimised temperature uniformity across large volumes reduces local cold spots.
• EC fan option lowers electrical consumption compared with conventional motors (up to ~32%).
• Simplified hydronic and electrical connections for professional installation.

Applications

• Production halls and assembly areas
• Sports centres and gymnasiums
• Warehouses and logistics centres
• Vehicle workshops and garages
• Large retail spaces and department stores

Documentation available

• User manual
• Product description
• AVS Unit Heater EC technical brochure

Composition / Main components

• Casing with slim-line front panel and aluminium grille
• Jaga AVS® (Air Venturi System)
• Heat exchanger
• EC fans (electronic commutated motors) or standard fans
• Mounting screws and suspension fittings
• Hydronic connection points
• Electrical connection terminals

Characteristics / technical specifications

• Product type: Hydronic unit heater for large-volume spaces
• Design: Slim-line housing with flat front panel and aluminium grille
• Air mixing: Air Venturi System for efficient blending of heated and ambient air
• Performance: Faster heating and improved temperature distribution vs conventional unit heaters
• Energy: EC fan option for reduced electricity consumption (up to ~32% less)
• Connections: Hydronic and electrical connections for professional installation
• Typical applications: Industrial and commercial large-volume environments
