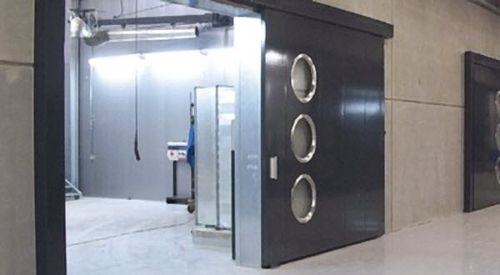

Sliding industrial door ORPHEUS 1-FLG
steelautomaticfor public buildings

sliding industrial door
sliding industrial door
sliding industrial door
sliding industrial door
sliding industrial door
sliding industrial door
Add to favorites
Compare this product


Opening system
Technical characteristics
for public buildings
Other characteristics


DOOR LEAF: The door leaf consists of several 300-1000 mm wide elements (depending on the door width). The separate elements are joined to a sturdy door leaf through a special linking system so that no concavities, respectively screw heads are visible. The thickness of the door leaf is 62 mm. The surface is completely level and consists of zinc-coated, 0.75 mm thick steel sheets. The steel sheets and the fire protection filling are caulked all over. The running-in profile and the labyrinth profile are zinc-coated. GUIDE RAIL: Each door element is guided in ball bearing mounted castors. The cold-milled, zinc-coated C-profiles are mounted to the ceiling by means of brackets. The guide rail casings are zinc-coated.
