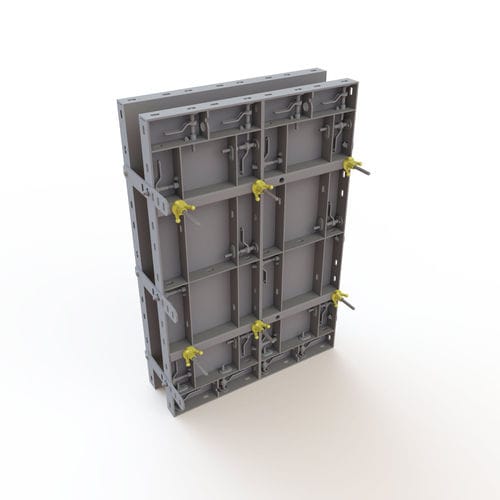

Modular formwork METAMODUL
framesteelplywood

modular formwork
modular formwork
modular formwork
modular formwork
modular formwork
modular formwork
modular formwork
Add to favorites
Compare this product


Characteristics

Type
modular, frame
Material
steel, plywood
Applications
wall

Description

These steel or multi-ply wood form face formworks allow to make ledger lines, individual house or buildings bases, swimming pools, individual houses, industrial or agricultural buildings with a high look quality and a comfort of use for the workers with all the accessories. The frame is made of steel and the form face is made of steel of 5mm thickness or of multi-ply wood of 15mm thickness. Acceptable pressure is: 5 Tons/m². The assembly of the panels is made by integrated bolts. Some safety platforms can be installed to provide a high security level to the workers. The dimensions of the tools are: large = 0.25, 0.50 and 1.00 meter, high = 1.50 and 3.00 meters. The weight of the tools is approximately = 77 kg/m² for the steel version and 37 kg/m² for the mixed version.
