Modular formwork
circularsteelwall

modular formwork
modular formwork
modular formwork
modular formwork
modular formwork
modular formwork
modular formwork
Add to favorites
Compare this product


Characteristics

Type
modular, circular
Material
steel
Applications
wall, for basin

Description

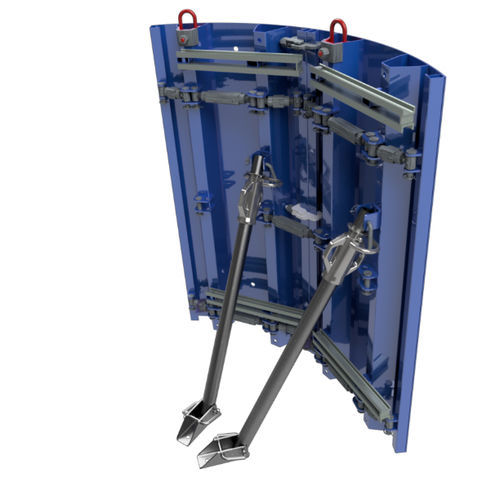

The rage of radius of these tools is: minimum internal radius 1 meter to infinity. The molding face is made of steel of 3mm thickness. Acceptable pressure is: 5 Tons/m² with use of stalk of tightening of Ø17mm. The juxtaposition assembly is made by integrated crowbars and for superimposing by special screwed plates. The dimensions of the tools are: large = 0.70 et 0.74 meter, high = 0.50, 1.50 meter. The weight of the tools is approximately = 75 kg/m²
