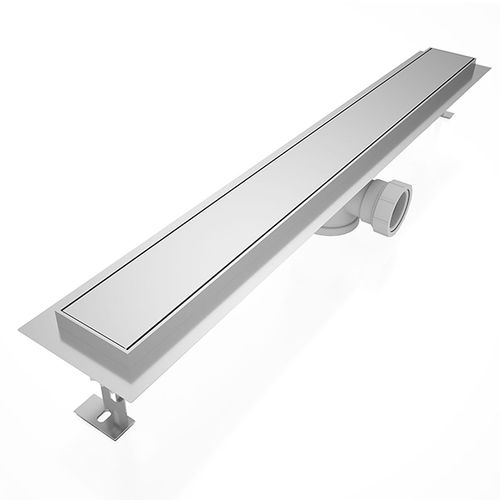

Transform your bathroom into a modern and functional place, turning a traditional shower enclosure into a barrier-free shower with a linear shower drain. SDR360 model is made of stainless steel AISI 304, has metal feet with adjustable height (up to 13 mm) and a plastic siphon (movable, rotating around its own axis) and provides water drainage of 36 l/min. The drain set and strainer are made of durable PVC.
Linear shower drain is suitable for tiles of various thicknesses. Due to the self-adhesive butyl sealing tape, which is available in the kit, the drain is waterproof. Its assembly is fast and efficient.
Outflow height: 105 mm (measuring from the bottom edge of the foot to the upper edge of the cover)
Maximum load: 120 kg (264.5 lb)
STAINLESS STEEL LINEAR SHOWER DRAIN IN 6 UNIQUE DESIGNS
Linear drains are available in 6 different designs. Each one is made of stainless steel and does not obstruct the water flow. The choice depends on the type of bathroom and customer’s preference.
Available patterns:
Berlin – a drain that can be covered with tiles
Tokio – decorated in a minimalist, aesthetic style
Casablanca – a geometric pattern referring to the Moroccan design
Venedig – wave shape associated with Venetian gondolas and water
London – a grill with holes imitating raindrops
Amsterdam – a smooth mask without decorations
