Panel cladding JI 30-207-1035

steelsteelsheet metal

Overview

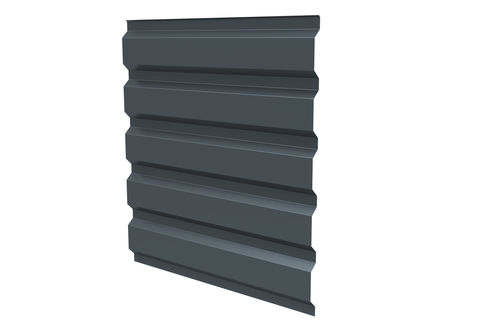

The JI 30-207-1035 cladding is a ribbed single-skin steel sheet designed for external façades. It is widely used for dry cladding systems where structural performance, ease of installation and a broad choice of finishes are required. Available in multiple thicknesses and lengths to suit architectural and construction specifications.

Dimensions
Length: Min. 1500.0 mm / Max. 13600.0 mm
Width: Max. 1035.0 mm

Thickness and weight
0.63 mm: 5.83 kg/m²
0.75 mm: 6.94 kg/m²

Features

• Material: Steel S320 GD

Coatings - Overview
Essential (25 µ)
Base coating suitable for external use (cladding, roofs, accessories, HVAC units).

• 01002: RAL 1002 (#D2AA6D)
• 01013: RAL 1013 (#E3D9C7)
• 01015: RAL 1015 (#E6D2B5)
• 01019: RAL 1019 (#A48F7A)
• 01021: RAL 1021 (#F6B600)
• 02001: RAL 2001 (#BA481C)
• 03000: RAL 3000 (#A72920)
• 03009: RAL 3009 (#6D342D)
• 05002: RAL 5002 (#00387A)
• 05008: RAL 5008 (#2B3A44)
• 05010: RAL 5010 (#004F7C)
• 05011: RAL 5011 (#1A2B3C)
• 05014: RAL 5014 (#637D96)
• 05015: RAL 5015 (#007CAF)
• 05017: RAL 5017 (#005B8C)
• 06003: RAL 6003 (#50533C)
• 06005: RAL 6005 (#114232)
• 06009: RAL 6009 (#27352A)
• 06011: RAL 6011 (#6B7C59)
• 06020: RAL 6020 (#37422F)
• 06021: RAL 6021 (#8A9977)
• 07006: RAL 7006 (#766A5E)
• 07012: RAL 7012 (#575D5E)
• 07015: RAL 7015 (#4F5358)
• 07016: RAL 7016 (#383E42)
• 07021: RAL 7021 (#2F3234)
• 07022: RAL 7022 (#4C4A44)
• 07032: RAL 7032 (#B5B0A1)
• 07035: RAL 7035 (#d7d7d7)
• 07037: RAL 7037 (#7A7B7A)
• 07042: RAL 7042 (#8E9291)
• 08004: RAL 8004 (#8D4931)
• 08011: RAL 8011 (#5A3827)
• 08012: RAL 8012 (#66332B)
• 08014: RAL 8014 (#4A3526)
• 08019: RAL 8019 (#3D3635)
• 08024: RAL 8024 (#795038)
• 08025: RAL 8025 (#755847)
• 09001: RAL 9001 (#E9E0D2)
• 09002: RAL 9002 (#D6D5CB)
• 09005: RAL 9005 (#0E0E10)
• 09006: RAL 9006 (#A1A1A0)
• 09007: RAL 9007 (#868581)
• 09010: RAL 9010 (#F1EDE1)
• 09016: RAL 9016 (#F1F1EA)
• 50004: Woodstructure (#96652A)
• 70003: 1102 Rouge Tuile (#A65448)
• 90007: 4750 Gris Nuage (#949599)

Ultra
Coating for severe external environments: profiles, sandwich panels for roofs and façades, building accessories (tiles, gutters, etc.).

• 01015: RAL 1015 (#E6D2B5)
• 05008: RAL 5008 (#2B3A44)
• 07015: RAL 7015 (#4F5358)
• 07016: RAL 7016 (#383E42)
• 07021: RAL 7021 (#2F3234)
• 07022: RAL 7022 (#4C4A44)
• 07035: RAL 7035 (#d7d7d7)
• 08012: RAL 8012 (#66332B)
• 09002: RAL 9002 (#D6D5CB)
• 09005: RAL 9005 (#0E0E10)
• 09006: RAL 9006 (#A1A1A0)
• 09007: RAL 9007 (#868581)
• 09010: RAL 9010 (#F1EDE1)

Reference standards
Galvanized steel: NF EN 10346:2015 - tolerances per NF EN 10143:2006 - NF P34-310:2017
Coils coating: NF EN 10169:2022 - NF P34-301:2017
Tolerance: RAGE professional recommendations July 2014
Calculations and tests: NF P 34-503-1:2024 interpreted according to RAGE 2014 recommendations and applicable Eurocodes / NV65 rules as specified for wind design.

Technical characteristics / specifications

• Commercial name: JI 30-207-1035
• Type: Ribbed cladding sheet (single-skin cladding)
• Material: Steel S320 GD
• Effective width: 1035.0 mm
• Available lengths: 1500.0 mm - 13600.0 mm
• Available thicknesses: 0.63 mm (5.83 kg/m²), 0.75 mm (6.94 kg/m²)
• Available coatings: Essential (25 µ) and Ultra (RAL palette and special finishes listed above)
• Standards: NF EN 10346, NF EN 10169; tolerances and calculations conform to RAGE recommendations and applicable Eurocodes / NV65 where relevant
