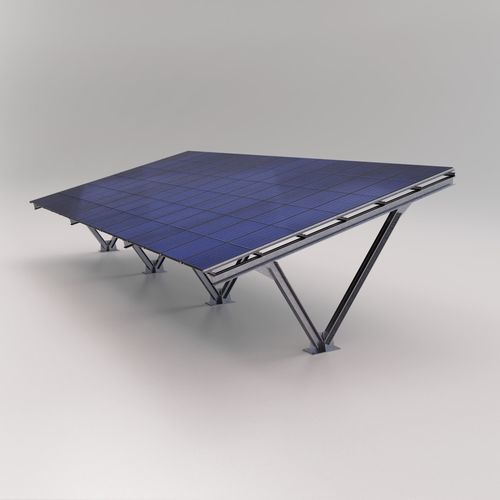

Parking lot mounting system JORISOLAR RS-PARK 2

solarfor photovoltaic installationsfor PV applications

Overview
The JoriSolar RS-Park 2 is a structural rail system for photovoltaic parking canopies and shelter applications. It enables solar shading while producing renewable energy. Photovoltaic modules are mounted directly onto the RS-Park 2 rail: panels are inserted from above and secured from below using a clipping system compatible with work from a lifting platform, allowing fast and safe on-site assembly and integrated rain drainage at the lower slope.

Installation & assembly

• Photovoltaic modules mounted directly onto RS-Park 2 rail
• Panels inserted from the top of the structure
• Panels clipped and secured from below using a lifting platform
• No additional roofing elements required

Thickness & weight
1.25 mm: 3.27 kg/m
1.5 mm: 3.92 kg/m

Materials & standards
Material: Galvanized steel ZM310 or Magnelis (S350GD). Standards: EN 10346:2015; EN 1090-2:2018; tolerances per EN 10143:2006. Geometry tolerances: EN 1090-2:2018.

Technical specifications

• Product / model: JoriSolar RS-Park 2
• Application: solar shading structures for parking or shelter with integrated PV modules
• Mounting method: modules inserted from top, clipped and secured from below
• Material options: Galvanized steel ZM310 or Magnelis (S350GD)
• Available thicknesses: 1.25 mm, 1.5 mm
• Weight by thickness: 1.25 mm = 3.27 kg/m; 1.5 mm = 3.92 kg/m
• Length range: Min. 1200.0 mm / Max. 14600.0 mm
• Standards: EN 10346:2015; EN 1090-2:2018; tolerances per EN 10143:2006
