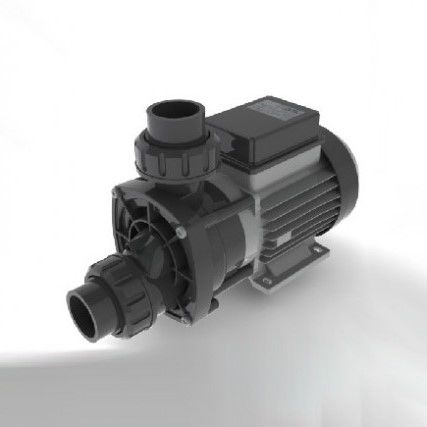

Hydromassage system swimming pool pump SRM 900

max. Pressure H m: 9.8 max. Flow l/min: 300 Noise Emission dB: 60 Power P1 Kw: 0.69 Power P1 HP: 0.92 Voltage V/Hz/~: 220 – 240 / 50 / 60 / 1~ (*) Ampere ~ A: 3.25 Weight kg: 5.90 Pump and motor features • Pump for hydro massage systems with multifunctional electronic controls. • WITH UNIONS: straight for the suction and ‘T’ for the delivery. • Motor: externally fan cooled aluminium casing. • Protection class IP X5. • Incorporated thermal overload switch with automatic reset. • Impeller made out of NORYL–PPOGFN. • Carbon/ceramic mechanical seal. • NBR seals and O-rings. Assembly assembly to the bath tub this SUPPORT, available on request, together with a M10 threaded rod and some nuts.. the job is done! No silent blocks are necessary! Just slide insert the support under the pump housing, fix it with the delivered screw and connect the system! Important SRM pumps delivery standard is: 1 m power cable and unions. The diameter and material of unions must be specified on the order as follows: • for suction side diam.40, 48 or 50, • for pressure side T-union diam.25 or 32 The SRM – assembly – support is supplied only on request. Like all JTC – Pumps, also these NEW – SRM – PUMPS are available with following ACCESSORIES on request: • SRM – assembly – support • built in pneumatic actuator • electronic LEVEL SENSOR combined with pneumatic pump actuator • pneumatic push button, chromed • electronic LEVEL SENSOR combined with digital pump control • digital pump control keyboard
