LED strip light TCSS

Overview

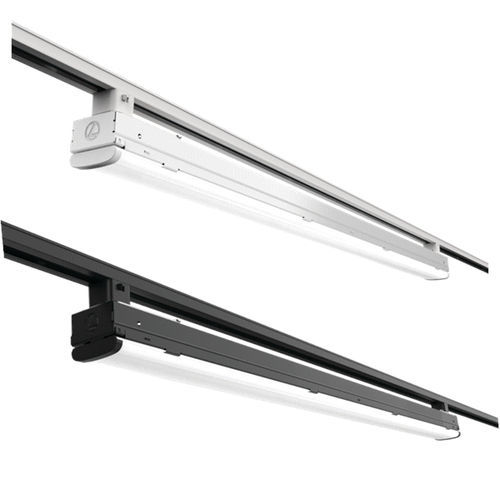

In line with market needs, the Juno Trac-Master TCSS Commercial Linear Ambient fixture makes it simple to effortlessly integrate attractive ambient and accent lighting in any space. Available in 2FT and 4FT versions and delivering 1000 lumens per foot and L70 performance of over 120,000 hours, these luminaires can be installed end-to-end to simulate continuous illumination, or they can be spaced apart to integrate accent track luminaires where needed.

Key features

• Available nominal lengths: 2FT and 4FT
• High output: approximately 1000 lumens per foot (typical fixture outputs listed below)
• Long life: L70 performance > 120,000 hours
• Can be installed end-to-end to simulate continuous linear illumination or spaced for accent lighting
• Multiple track mounting adapter options to fit common track types (GTYPE, HTEK, HTYPE, JTYPE, LTYPE, TEK)
• Designed as a commercial linear ambient track head (Trac-Master® family)

Product details (excerpted table)
Size: 2FT, 4FT
Shape: Rectangular
Light Source: LED - Static
Lumens: 2000 LM, 4000 LM
CCT / LED Color: 3000 K, 3500 K, 4000 K, 5000 K
CRI: 80
Product Type: Track Head
Environmental Listing: Dry Location
Regulatory Listing: UL
Dimming Protocol: Electronic Low Voltage, Forward Phase, Incandescent, Magnetic Low Voltage, Reverse Phase
Color (typical): White
Mounting Type: Track / Monopoint
Voltage Rating: 120, 277
Fixture Wattage: 15, 30
Track Mounting Adapter: GTYPE, HTEK, HTYPE, JTYPE, LTYPE, TEK
Series: TCSS

Technical specifications

• Series: TCSS (Trac-Master® Commercial Linear Ambient)
• Sizes: 2FT, 4FT
• Shape: Rectangular
• Light source: Integrated LED (static)
• Nominal lumen outputs: 2000 lm (2FT nominal), 4000 lm (4FT nominal) — ~1000 lm/ft
• Correlated Color Temperatures (CCT): 3000 K, 3500 K, 4000 K, 5000 K
• Color Rendering Index (CRI): 80
• Fixture wattages: 15 W, 30 W (nominal)
• Dimming: Compatible with Electronic Low Voltage, Forward Phase, Incandescent, Magnetic Low Voltage, Reverse Phase dimming protocols
• Voltage rating: 120 V and 277 V
• Mounting: Track or monopoint; compatible track adapters: GTYPE, HTEK, HTYPE, JTYPE, LTYPE, TEK
• Environment: Dry location listing
• Regulatory: UL listed
• Life / lumen maintenance: L70 > 120,000 hours (manufacturer performance)
