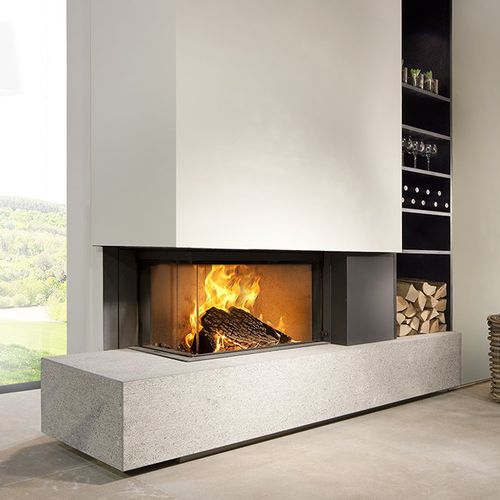

Closed gas hearth KALFIRE W65/38C

cornermetal

Interior options CE Certified Dimensions Appliance Width (mm) - 907 Depth (mm) - 524 Height (mm) - 1521 Glass size Width (mm) - 650 Width side glass (mm) - 349 Height (mm) - 380 Hearth base Length (mm) - 300 Width (mm) - 575 Connections Flue duct Flue connection (mm) - Ø 180 - Ø 200 Combustion air connection - 2 x Ø 150 (mm) Convection air inlet connection - 2 x Ø 150 mm / ≥350 cm² free opening Convection air outlet connection - 2 x Ø 150 mm / ≥350 cm² free opening Prescribed insulation thickness to combustible materials side panel (cm) - 5 rear panel (cm) - 5 base (cm) - - roof (cm) - 9 Accessories Installation Accesories mantle iron set plateau bracket support built-in kit flue gas regulator kit Ø 180 mm flue gas regulator kit Ø 200 mm Transport Accessories Lifting rod Heat porter
