door pull handle / stainless steel / contemporary / satin finish
ES3

Add to MyArchiExpo favorites
Compare this product Don’t compare this product
door pull handle / stainless steel / contemporary / satin finish door pull handle / stainless steel / contemporary / satin finish - ES3
{{requestButtons}}

Characteristics

  • Product applications:

    door

  • Material:

    stainless steel

  • Style:

    contemporary

  • Options:

    satin finish

Description

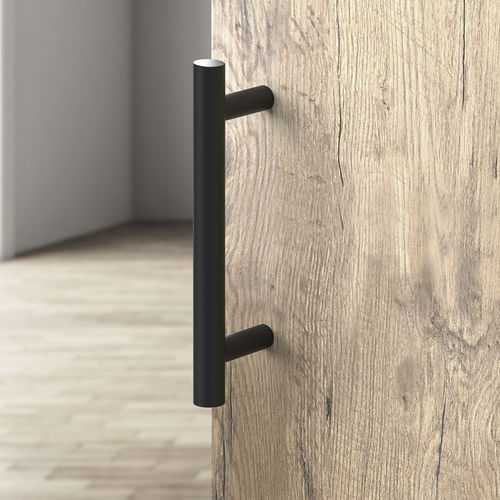

Pull handle ES 3
by KARCHER DESIGN

T shape, stainless steel
2 fixing points
Zirconium
Overall: 300 / 400 / 500 mm
Stainless steel
Overall: 300 / 400 / 500 / 600 / 700 / 800 / 1000 / 1200 / 1400 / 1600 / 1800 / 2000 mm
Handle diameter: 32 mm
Fixing with M8
single bolt through fixing
or back to back fixing as pair
For timber, metal, PVC or glass door


Finish: Cosmos Black (finish code 83)
Karcher article no.:
ES3-300 83 straight (Overall 300 mm, fixing centre 200 mm)
ES3-400 83 straight (Overall 400 mm, fixing centre 250 mm)
ES3-500 83 straight (Overall 500 mm, fixing centre 300 mm)
ES3-600 83 straight (Overall 600 mm, fixing centre 400 mm)
ES3-700 83 straight (Overall 700 mm, fixing centre 500 mm)
ES3-800 83 straight (Overall 800 mm, fixing centre 600 mm)
ES3-1000 83 straight (Overall 1000 mm, fixing centre 800 mm)
ES3-1200 83 straight (Overall 1200 mm, fixing centre 1000 mm)
