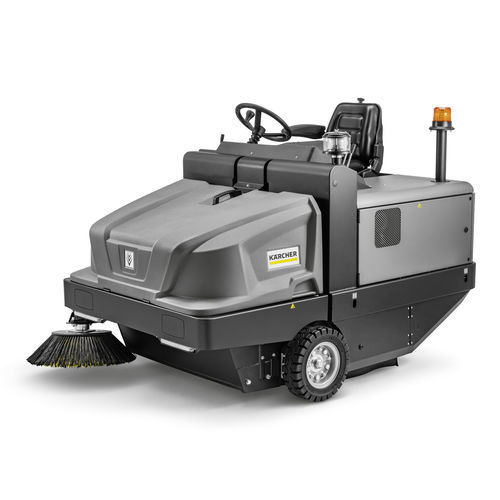

Ride-on power sweeper-scrubber KM 130/300 R I D

diesel enginewith combustion enginediesel

Product overview
The KM 130/300 R I D is an industrial ride-on sweeper designed for heavy dirt and dust in outdoor industrial environments. It features a large 300 L hopper, a powerful 15.8 kW diesel drive, a sturdy metal protection frame, intuitive lever controls and LED indicators to support long cleaning shifts.

6 key features

• V-shaped main brush focuses debris to the centre while side brushes ensure edge cleaning to the machine frame.
• Dual-scraper filter shaker sustains suction by mechanically removing dust from the filter.
• Adjustable suction control reduces moisture intake and protects the filter on damp surfaces.
• Tool-free filter removal and washable filters minimise downtime for maintenance.
• Safety and operator comfort: seat switch, hydraulic hopper lift, puncture-free tyres, LED lights and beacon as standard.
• Ease of use: main brush height gauge and clear service access simplify daily checks.

Additional features

• Simple, robust lever controls with LED indicators and one-pedal forward/reverse operation.
• Hydraulic hopper lift enabling discharge up to 1.40 m for easy emptying.
• Optional adjustable side brush speed for efficient debris transfer and dust suppression.
• Ergonomic comfort seat and operator-oriented control layout.
• Large flat filter area with an effective dust-shedding system to reduce airborne dust.
• Fully hydraulic traction drive for low maintenance and high durability.
• Puncture-free tyres and hydraulic rear-wheel drive for reliable manoeuvrability.

Accessories / included items

• Puncture-proof tyres (standard)

Functions

• Manual filter shaker
• Main brush wear indicator
• Power steering
• Adjustable suction power
• Sweeping with vacuum assistance
• Forward/reverse, hydraulic hopper, outdoor use, operating hours counter, automatic main brush adjustment

Specifications
Propulsion: 4-stroke engine
Power (kW): 15.8
Drive type: Diesel
Max. theoretical productivity (m²/h): 1300
Productivity with 2 side brushes (m²/h): 1500
Working width (mm): 1000
Working width with 1 side brush (mm): 1300
Working width with 2 side brushes (mm): 1550
Hopper capacity (l): 300
Gradeability (%): 18
Travel speed (km/h): 10
Filter area (m²): 2.6
Load capacity (kg): 477
Machine weight incl. accessories (kg): 970
Weight with battery (kg): 970
Packed weight (kg): 970

Characteristics / technical data

• Application: outdoor industrial sweeping for heavy dirt and dust
• Drive: diesel engine (4-stroke, 15.8 kW)
• Capacity: up to 1300 m²/h (up to 1500 m²/h with side brushes)
• Working width: 1000 mm (standard), up to 1550 mm with side brushes
• Hopper: 300 L, hydraulic lift with discharge up to 1.40 m
• Filter area: 2.6 m² with dual-scraper filter cleaning
• Safety & comfort: seat switch, LED indicators, beacon, LED lights, puncture-free tyres
• Weight: approx. 970 kg (machine with battery)
