Basic information
Weight167 kg
Heat output18,7 kW
Heat output of water7,9 kW
Heating capacity m2/m3187 m2/ 467,5 m3
Technical data
Heat output
18,7 kW
Heat output of water
7,9 kW
Heating capacity m2/m3
187 m2/ 467,5 m3
Water capacity
20 l
Outer dimensions (wxhxd)
680x530x460 mm
Glass size
590x380x4 mm
Efficiency
78,5 %
Fuel diameter
180 mm
Accessories
External air intake- not included
Additional informations
dimensions may deviate +/- 2mm
Description

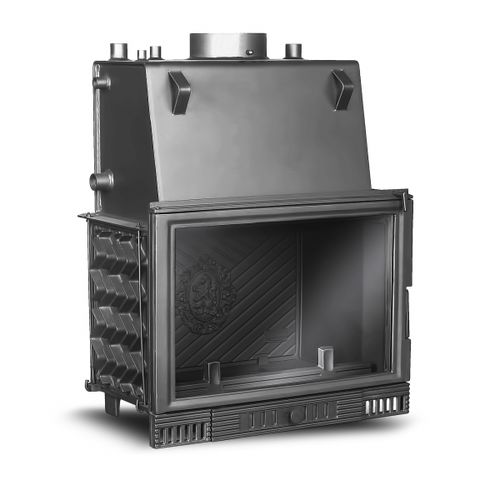

The W1 with water jacket:
fuel (wood), class EN-GJL-200 cast iron
It is equipped with:
1. baffle
2. extra back plate, preventing excessive insert wear
3. decorative fence screen, which prevents wood from falling out
4. air intake adjustment through ash drawer
5. external air intake
Densely placed ribs, which increase the heat exchange surface.
