Steel edge fall protection KEE MODULES

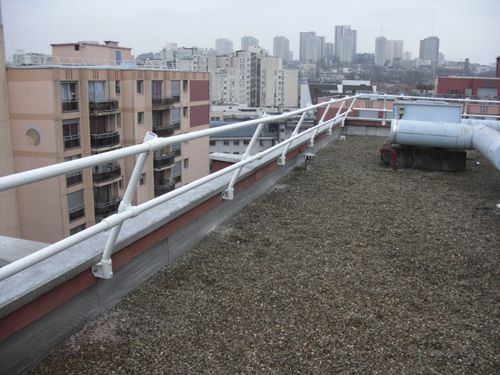

KEE MODULES is a range of pre-designed upright assemblies to enable the quick specification and installation of EN14122 part 3 compliant structurally mounted roof edge protection. KEE MODULES are available in size 7 (42.4 mm) size and 8 (48.3 mm) Galvanised Steel or Aluminium. The standard configurations offer side fixing, top fixing or a fitting to enable mounting underneath aluminium copings. Handrails can be in line or offset, with single or double rails and the Uprights can be supplied straight, inclined or radiused. Features Galvanised steel or aluminium Adaptable to many roof configurations Multiple variations Conform to EN ISO 14122 pt3 No threading, welding or riveting required. Benefits Pre-assembled uprights for quicker installation No welding, no hot work permits required Can be adjusted on site to suit local conditions Fittings don’t damage any protective coatings applied to the tube Assured design loads Consistent appearance Easily installed by lower skilled and therefore less expensive labour.
