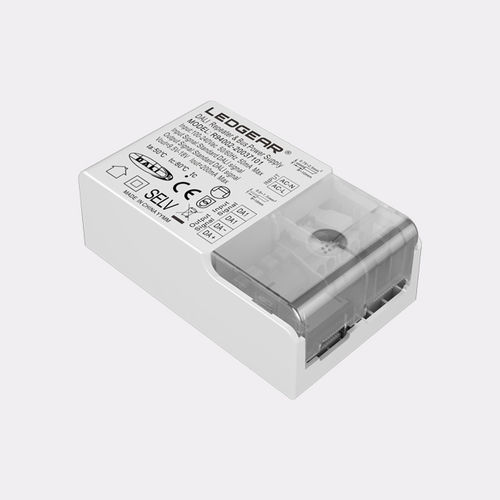

With the scalability of DALI application, Kinglumi introduces R94002, a 2in1 design LEDGEAR® DALI Repeater & Bus Power Supply. Not only can power up to 64 DALI ECGs with 200mA output current, it also can power the DALI controllers and input devices which don’t have internal power supply (such as DALI dimmer, DALI panels, DALI groupings, and scene controllers). In addition, R94002 can switch to the repeater mode which amplifies the DALI signal for extending DALI line. R94002 is fully compliant with EN61547, EN61347-1 and EN55015/IEC CISPR15, and design to be used in IEC62386 DALI installation. Universal input from 100 to 240VAC allows it to be used anywhere in the world, and certified to Class II, providing perfect solutions for DALI control system. Features • DALI repeater and DALI bus power supply, 2in1 selectable DIP switch • This device is designed to be used in DALI installation and supports DALI standards. EN 60929 (DALI-0) EN 62386 (DALI-1) EN 62386-101 Ed.2 (DALI-2) • Total max. supply power for DALI line of 64 control gears, plus 36 input devices • Push-fit terminals for easy wiring, and with primary looping function • Standby power<0.5W compliant to EcoDesign(EU 2019/2020) • Permissible AC cable 0.75-2.5mm² wire gauge • Suitable for both retrofit and new installations • Working Ta=-20°C ~ +50°C • Five years guarantee and lifetime technical support When use as a DALI repeater • For amplifying the DALI signal • For extending the DALI line length from 300 to 600 m. • Allows star wiring via the DALI repeater function • the DALI repeater function integrated with DALI bus power supply
