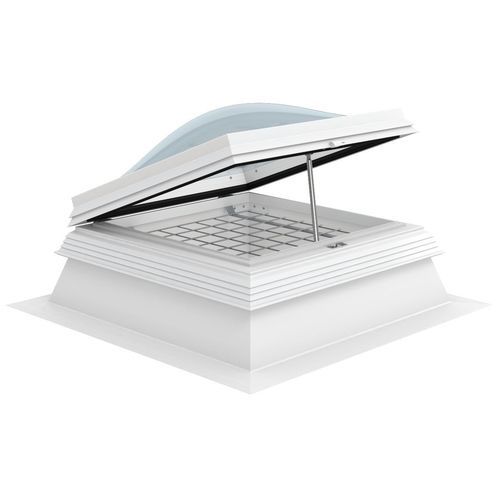

Metal dome skylight NEO PLUS

polycarbonatereinforcedcurved

Overview The Neo Plus Skylight Dome is a thermally optimised polycarbonate skylight designed to introduce high levels of daylight into flat-roof buildings while meeting enhanced thermal performance requirements. Suitable for new build and refurbishment projects, the product can be specified with an opening base for daily ventilation, smoke extraction and heat exhaust functions.

Product Highlights

• Thermally optimised design with reported Ut-values from 0.92 to 1.9 W/m²K depending on glazing
• Double-sealed system with EPDM hollow-chamber gaskets for improved weatherproofing and airtightness
• Multifunctional system frame for secure storage of roof membranes and weather protection
• Suitable for retrofit applications and new builds
• Standard sizes from 50 cm × 100 cm (incident light area 0.24 m²) to 200 cm × 300 cm (incident light area 5.04 m²)
• Inner metal profiles provide structural rigidity

Applications & Performance Neo Plus Skylight Domes are suitable for flat roofs with pitches up to 25°. They are commonly specified for industrial and office buildings where thermal performance and controlled daylighting are required, but the product is adaptable to a wide range of projects.

Ventilation & Operation The unit can be supplied with an electrically or pneumatically opening base to provide daily ventilation and/or smoke and heat exhaust functionality, selectable at specification stage.

Design & Installation The skylight is designed for straightforward installation to reduce on-site assembly time. The polycarbonate dome combined with inner metal profiles ensures dimensional stability and ease of handling, while the system frame supports fast, safe integration of roofing membranes.

Technical specifications

• Product type: Thermally optimised skylight dome
• Model name: Neo Plus Skylight Dome
• Thermal performance (Ut-values): reported between 0.92 and 1.9 W/m²K depending on glazing; also cited as 1.2–1.9 W/m²K in some specifications
• Sealing: Multiple sealing system with EPDM hollow-chamber gaskets; double sealed for improved weatherproofing and airtightness
• Standard sizes: 50×100 cm (incident light area 0.24 m²) to 200×300 cm (incident light area 5.04 m²)
• Roof pitch suitability: Flat roofs up to 25°
• Operation: Option for electrically or pneumatically opening base for daily ventilation and/or smoke & heat exhaust
• Frame: Multifunctional system frame for storage of roof membranes and protection against weathering
• Construction: Polycarbonate dome with inner metal profiles for structural rigidity
• Applications: New build and refurbishment projects; industrial and office buildings; suitable for retrofit
