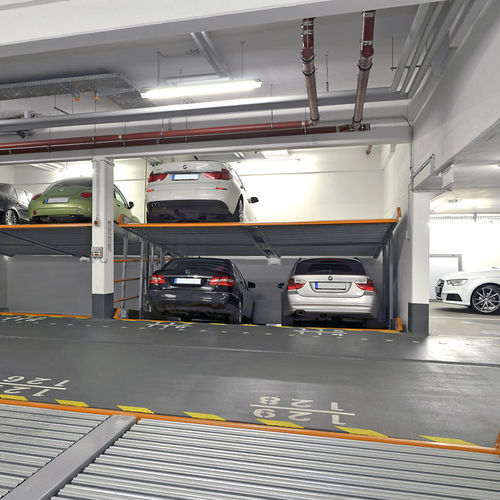

2 tray parking system MULTIBASE 2078i

inclinedplatform

Compared to other systems, the MultiBase 2078i is distinguished by a smaller installation height. The car door can be opened wide due to the offset steel pillar, which allows easy getting in and out of the car. The MultiBase 2078i can store the heavyweights and is suited, depending on the type selected, up to heights of 215 cm. SPECIFICATION Single platforms (EB) for 2 cars or double-platforms (DB) for 4 vehicles Total height of standard type: 335 cm Pit depth of standard type: 185/185 cm Vehicle measurement: Heights from 150 to 215 cm, lengths from 500 to 520 cm Usable platform width for standard type: 230/460 cm, optionally up to max. 270/540 cm Standard design: 2.000 kg per parking space, optional max. 2.600 kg EB/DB or max. 3.000 kg EB Horizontal access to upper parking levels, slightly inclined access to lower parking levels Platform surface: StandardGrip, optional AluLongLife or EasyWalk independent parking FIELD OF APPLICATION Residential and commercial buildings, single and semi-detached houses, office buildings, single garage, underground parking lot, ready-made garages, car parks, hotels, surrounding property
