Platform parking system TRENDVARIO 6300

lift

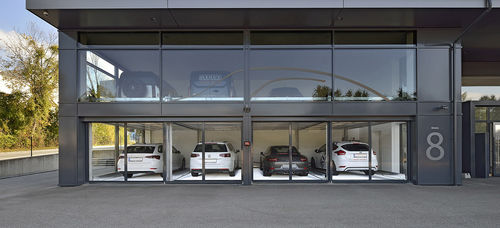

THE PREMIUM SEMI-AUTOMATIC PARKING SYSTEM WITH 3 PARKING LEVELS The TrendVario 6300 creates more parking spaces in a small area. The entrance to the TrendVario 6300 is at ground level. Unlike the other models, the system accommodates three vehicles one above the other, and the parking spaces are moved vertically and horizontally: down into the pit or up to the third parking level. The requested parking space is moved into position. This means that they accommodate more cars within the same floor area. For maximum operating safety, the access level is secured from the entire system by gates. This also protects the vehicles from theft and vandalism. The semi-automatic parking system offers up to 29 parking spaces in total. SPECIFICATION For independent parking 10 grids behind each other – up to 29 parking spaces are possible Building height: 325 cm to 460 cm in 5 cm increments Pit depth: 175 cm to 240 cm in 5 cm increments Vehicle dimensions: height 150 cm to 215 cm, length 500 cm to 530 cm Usable platform width: 230 cm to 270 cm Platform load: 2,000 kg per parking space, optionally 2,600 kg or max. 3,000 kg Horizontal access to all parking levels Platform coating: StandardGrip, optional AluLongLife or EasyWalk Operation via SmartChip, SmartPortable or SmartApp
