PDS4-ALU Extrusion
Ref: B1718
Small dimensions, easily release heat, simple assembly, lightweight, environment friendly.
Patent Number: US D621,091 S
Designed to reach an IP67 waterproof rating
Ability to obtain a line of light
Good heat dissipation
For multiple applications
Housing for LED strips up to 0.39' / 10 mm wide
Technical specification
Application
- designed for the construction of lighting fixtures and backlighting luminaires. In furniture, exhibition, interior design elements like stair treads, platforms, shelves, niches, etc.
- can be embedded in narrow grooves
- can be used for external illumination in the sealed version, except for applications where it would be exposed to considerable mechanical forces
Assembly
- can be mounted with appropriately selected mounting adhesives, professional double-sided adhesive tapes, metal and plastic mounting brackets, as well as adjustable mounting brackets
Also it can be mounted to drywall panels with the use of PDS mounting spring.
Additional information
- suitable for bending in the plane adjacent to the LED strip
- can be equipped with transparent and frosted covers, aluminum-colored plastic, metalized and conductive end caps

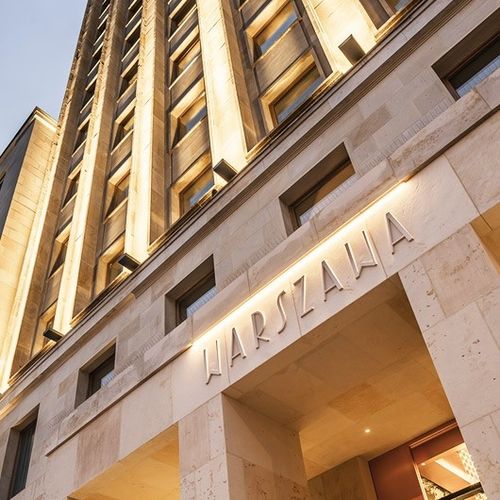

- extrusion can be made waterproof ( IP 67 ) and be used as an outdoor lighting for elevations or architectural elements of gardens
- lighting or illumination of certain areas (stream of light may vary depending on the power of applied LEDs)
- extrusion acts as the connector between the light source and the application area and provides a stylish and finished look
- space for LED strip: 0.40" / 11.2 mm
