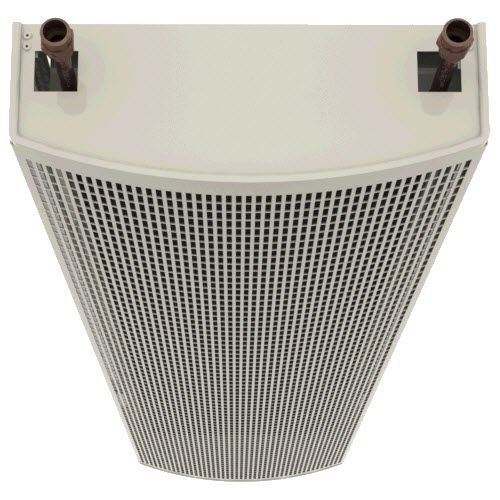

Passive chilled beam VPK

Passive chilled beams, KOOLAIR, model VPK, without supply air, are used for cooling in a room. As in all water conditioning systems, choosing passive chilled beam has the energy benefits of using water as a vehicle to carry the cooling power to the rooms. The type VPK passive chilled beam comprises a casing and a cooling coil with connection flanges. Casing and perforated metal facing are of galvanised steel sheet, cooling coil has copper tubes with formed aluminium fins and galvanised flanges. They can be integrated with luminaries, speakers, etc. The standard surface finish is pure white (RAL 9010) powder-coated. Other RAL colours can be supplied on request! Models VPK. Passive chilled beams with perforated plate. VPK-E. Passive chilled beams without perforated plate Finished The housing and perforated plate are manufactured from galvanized steel. The heat exchanger unit consists of copper pipes and an aluminium fin pack, with galvanized flanges. The standard surface finish is pure white (RAL 9010) with a powder finish. Both plate perforation and colours can be modified upon request. In addition, light fixtures, speakers, sprinklers, etc., may be installed in the beam
