Smoke evacuation damper, KOOLAIR, model SCDC, is composed of a single body of heatresistant material, with steel flanges on either side.
Certified according to EN 1366-10, classified according to EN 13501-4; EI 120 (ved i o) S 1500 AA multi.
Product description

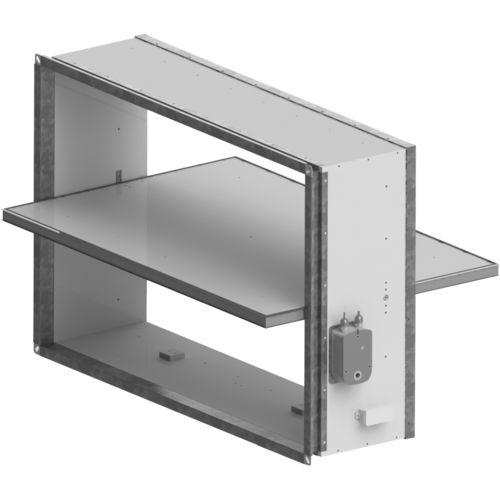

KOOLAIR’s rectangular smoke evacuation damper,
model SCDC, is composed of a single body of heatresistant material, with steel flanges on either side
(optional) to facilitate mounting in rectangular ducts,
and a single heat resistant closing blade.
Tunnel type damper for in-line installation in
horizontal ducts for use with both supply and
extract, certified according to EN 1366-10, classified
according to EN 13501-4; EI 120 (ved i o)
S 1500 AA multi.
The SCDC smoke damper has the 0370 - CPR
- 2600 certificate of constancy of performance
according to EU Regulation (CE marking).
Designed according to EN 12101-8 specifications.
Activation
- Automatic actuation and reset by servomotor:
SCDC smoke extract dampers are activated and
reset by means of a servomotor with a supply
voltage of 24 V AC/DC (model BLE24) or 230 V AC
(model BLE230). These motors include start and
end of stroke limit switches to monitor the opening/
closing status of the damper.
Other activation options:
- Manual reset, activation by electric coil. Optional
end of run limit switch:
24V electric drive coil DC
48V electric drive coil DC
24V electric drive coil AC
48V electric drive coil AC
- Automatic reset by means of servomotor
BL24-48, with a supply voltage of
24 ... 48 V AC/DC, activation by previously
mentioned electric coils. An end of run limit switch
can be optionally incorporated.
