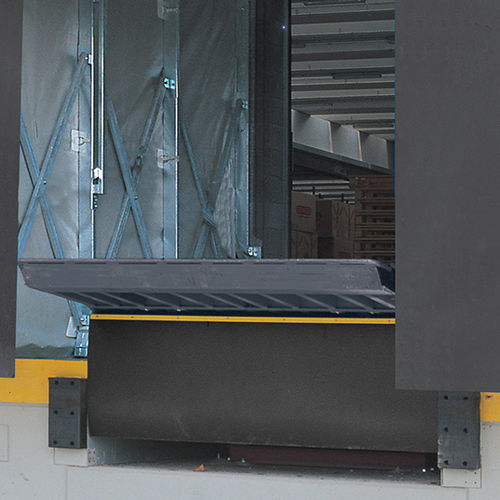

Electro-hydraulic dock leveler

telescopic

Telescopic ramps for loading and unloading goods Kopron designs and manufactures electro-hydraulic ramps with a telescopic flap for loading and unloading goods. Once the platform has been raised and the flap of the ramp rests on the truck body, it follows the raising and lowering of the vehicle (depending on the operation being carried out by the operator: if it is loading or unloading goods), as well as the lateral unbalanced load by twisting it up to 100 mm. These particular loading ramps are ideal in cases of side loading of the vehicle or rear loading on containers. Telescopic loading ramps are produced in standard mode with the following dimensions: A Width from 2000 to 2200 mm B Length from 2500 to 3000 mm H Height from 550 to 800 mm L flap length from 400-1000 mm
