Roll-up industrial door REPLAY

PVCfire-ratedthermally-insulated

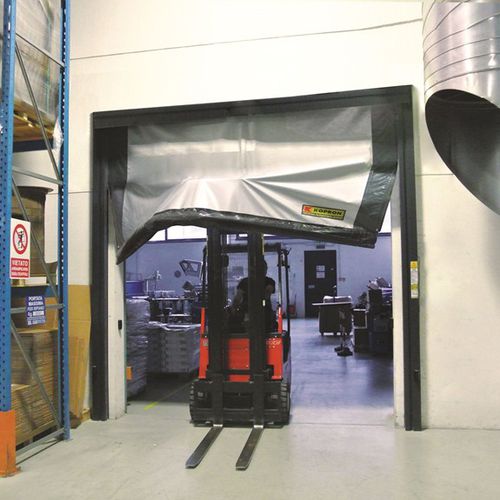

High-speed rewind door with special side guides REPLAY is the self-repairing high-speed rewind door that, to the characteristics of the FAST ROLL category, adds a series of special self-lubricating anti-wear PVC side guides, mounted on special oscillating supports that follow the course of the sheet. The high-speed door repairs itself after a possible accidental impact, the cover detaches from the side guides and, in the next closing cycle, automatically returns to the auto guides, restoring operation. The attention to detail, the high quality of the structural and automation materials and the innovation in the fabric structure coupling system make Replay 3.0 an industrial door with highly advanced technology. Technical Details Opening/closing speed: up to 2 m/sec – 0.8 m/sec. Panel: inverter digital technology Limit switch: encoder Power supply: 220 volts Safety coast in accordance with EN 12978 Opening and closing cycles in 12604: tested up to 1,000,000 cycles Tear-resistant PVC sheet bispalmate class 2, minimum temperature – 30° and max. + 70° Advantages System of special side guides System of special side guides in EPDM (Fast Roll), and in self-lubricating Polizene (Replay), mounted on special oscillating supports that follow the course of the sheet. Durable metal frame design Self-supporting, powder-coated aluminum frame in any color that frames and guides the sturdy PVC sheet. Anti-tear cloth Closing cloth in double-sided PVC anti-tear fabric, class 2 self-extinguishing, any portholes or transparent sectors. Minimum overall dimensions The mantle wraps compactly behind the lintel, not occupying any useful surface of the warehouse.
