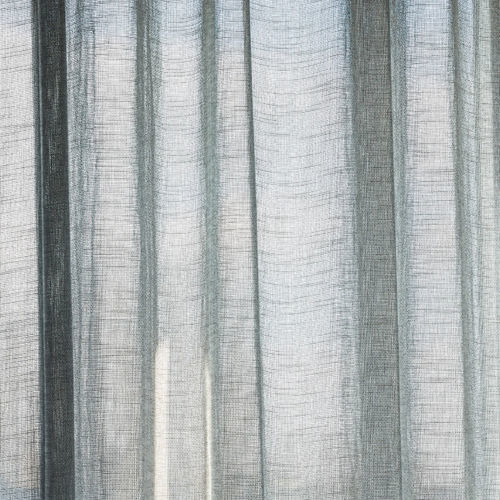

Curtain fabric LINEX II

plainpolyesterfire-rated

Product description
Linex II is a flame-retardant iteration of the curtain Linex, developed for semi-transparent applications with a refined, dry crepe-like structure. Woven from recycled polyester, it offers a muted, atmospheric palette and coordinates with Relax II and Unix II to enable broad specification options for interiors.

Application

• Curtains for commercial and contract interiors

Composition

• 71% recycled polyester
• 29% polyester FR (flame retardant)

Physical properties

• Width: 150 cm (59")
• Weight: 200 g/lin. m (6.45 oz/yd)
• Turnable: can be turned
• Repeat: Approx. 0/0 cm
• Width on image (selvedge): Horizontal
• Yarn type: Filament
• Binding: Dobby

Performance

• Lightfastness: ISO 105-B02 (evaluation scale 1–8)
• Visual light transmission: varies by colour (examples per configuration: e.g. 53%, 50%, 46%, 44%)
• Solar properties (examples by configuration): solar reflection ~29–41%, solar transmission ~30–53%, solar absorption ~6–29%
• Acoustic absorption (EN ISO 354): Absorption flat 0.05 / Unclassified; Absorption folded 0.10 / Unclassified

Fire performance / tests

• Passed or compliant with multiple standards: AS/NZS 1530.3; UNI 9177 Classe 1; BS 5867 part 2 type B; NF P 92 507 M1; EN 13773 class 1; IMO FTP Code 2010 Part 7; NFPA 701 (plus regional test reports)

Care

• Wash at max. 60°C / 140°F, mild process
• Do not bleach
• Do not tumble dry
• Iron at low temperature (max. 110°C)
• Professional dry cleaning possible (follow care label)
• Recommended: wash curtains approx. once a year; account for possible shrinkage of 1–4%

Certificates & sustainability

• Greenguard Gold certified
• Health Product Declaration (HPD) available
• Contains recycled content; mono-material construction in primary yarn

Technical specifications

• Model / trade name: Linex II
• Brand: Kvadrat
• Category: Curtains
• Item number: 5540
• Width (product): 150 cm (59")
• Weight per linear metre: 200 g/lin. m (approx. 6.45 oz/yd)
• Material: 71% recycled polyester, 29% polyester FR
• Fire resistant: yes (flame retardant textile)
• Orderable by cut length: yes
• Allow custom size: yes
• Roll length: Approx. 50 metres (approx. 55 yds)
• Transparency: Transparent (depends on colour)
• Shrinkage (warp/weft): Approx. 1 / 1 %
• Wash load: Half
• Washable: yes
• Warranty: 10 years
• Produced in: Japan
• Yarn type: Filament
• Binding: Dobby
• Flammability / performance facets: Wet and dry crocking; Flammability; Physical properties
• Sustainability facets: Recycled content; Mono-material; Free from intentionally added PFAS
• Sustainability documentation: Greenguard Gold, HPD
• Production time (excl. transport & handling): up to 50 days
• Product lifecycle / lead time reference: product lead time reported as 50 days
