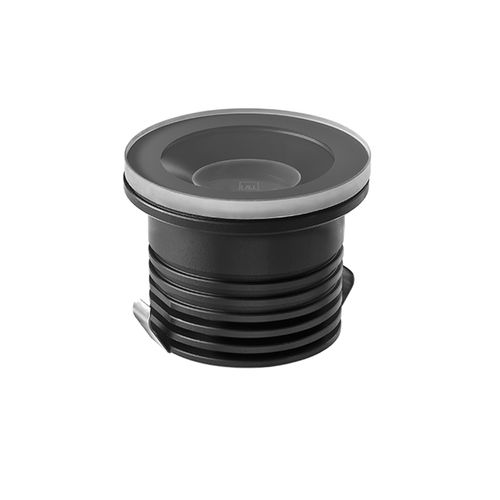

recessed ceiling light fixture / recessed floor / recessed wall / LED
LITUS 2

{{requestButtons}}

Characteristics

  • Type:

    recessed ceiling, recessed floor, recessed wall

  • Light source:

    LED

  • Shape:

    round, square

  • Location:

    outdoor

  • Material:

    tempered glass facing, anodized aluminum

  • Protection class:

    IP67

  • Other characteristics:

    RGB

Description

recessed uplight for outdoor applications; recessed (ceiling, wall, floor); Power: 2.5W, 3.5W (5° optics), 5W, 7W; RGB: max 7W; Power supply: 24Vdc; RGB: max 700mA; Lumen output at source: 168 lm (3000K, 2.5W, CRI 80), 147 lm (3000K, 2.5W, CRI 90), 224 lm (3000K, 3.5W, CRI 80), 196 lm (3000K, 3.5W, CRI 90); 488 lm (3000K, 5W, CRI 80), 452 lm (3000K, 5W, CRI 90), 657 lm (3000K, 7W, CRI 80), 608 lm (3000K, 7W, CRI 90), RGB: 311 lm, R: 108 lm G: 133 lm B: 70 lm (700mA); Delivered lumen output: 141 lm (3000K, 22°, 2.5W, CRI 80), 125 lm (3000K, 22°, 2.5W, CRI 90), 188 lm (3000K, 22°, 3.5W, CRI 80), 165 lm (3000K, 22°, 3.5W, CRI 90);352 lm (3000K, 34°, 5W, CRI 80), 284 lm (3000K, 34°, 5W, CRI 90), 463 lm (3000K, 34°, 7W, CRI 80), 374 lm (3000K, 34°, 7W, CRI 90), RGB: 235 lm, R: 92 lm G: 105 lm B: 38 lm (700mA, 34°); 1 high-intensity power LED, RGB: 3 power LEDs, 3 MacAdam steps (white LED colour), 50000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, RGB; Optics: 5°, 8°, 11°, 17°, 20°, sharp 21°, 34°, 45°, sharp 61°, 13°x52°, 21°x42°, diffuse; 13° tiltable ±15°, 22° tiltable ±15°, 30° tiltable ±15°, sharp 35° tiltable ±15°, 48° tiltable ±15°;CRI: 80, 90; Material: body in anodized aluminium, screen in tempered, serigraphed-grey and transparent extra-clear glass; Ingress protection: IP67; Impact resistance: IK08; 5° optics and 3.5W version: 4000K only CRI 80, version with screen in white, serigraphed glass available on request; Protection systems: IPS, PID; Appliance class: III; Weight: 350 g; Dimensions: Ø72x66 mm, 72x72x66 mm, Ø72x73 mm, 72x72x74 mm
