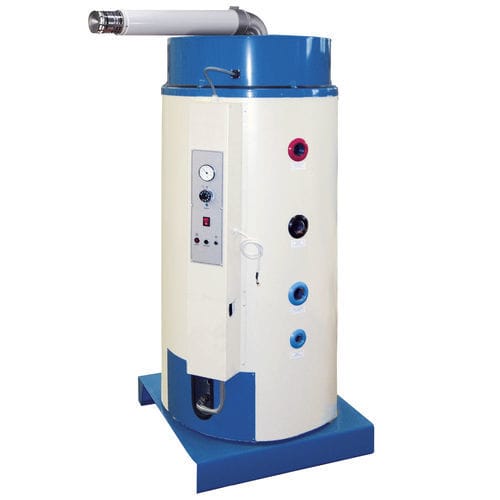

Gas water heater GTF-P

free-standingverticalindustrial

The GTF-P series water heaters are identified by the EN 483 European standard as: gas fired hot water heater with sealed combustion chamber and atmospheric burner equipped with fan in the combustion circuit. This equipment belongs to category II2H3+, which means that they can use second family gases (natural gases, H-gas) and third family gases (liquid gases, butane and propane). The GTF-P series water heaters are classified according to the system they use to take in the air and to discharge the fumes: type C13, C23 and C53 (European standard EN 483). Thanks to their efficiency, higher than 90%, these water heaters ensure substantial energy savings, and therefore a lower emission of pollutants. Fitted with a more powerful burner than the GTF model, they provide a higher amount of water in a shorter time. BOILER – Made of very thick, high quality steel sheet metal, ensuring a higher resistance to corrosion, thanks to an accurately applied double glass ceramic coating. OUTER CASING – pre-painted, aluminium and plastic coated sheet metal. INTERNAL INSULATION – made of thick glass mineral wool slabs which ensure correct evenness for heat retention. COMBUSTION UNIT The components of the combustion unit are all CE certified: Burner with electronic ignition and flame ionisation detector. Made of STAINLESS steel to ensure a higher resistance to corrosion caused by condensation. Burner ignition and control electronic board. Solenoid valve electronically controlled by the board. Temperature regulation and safety thermostat. Fitted with a safety valve.
