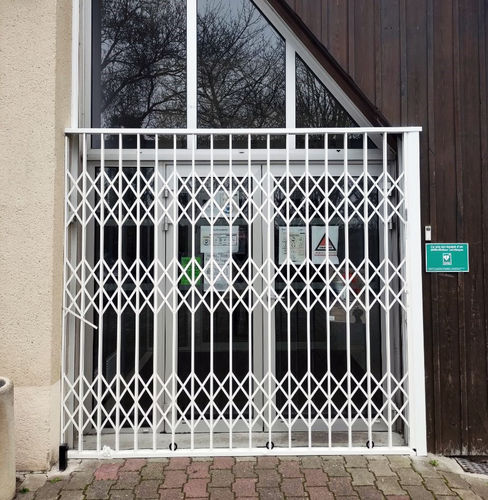

Easy to install, the Delial is an extensible and sliding rolling grid made of galvanized steel.
DIMENSIONAL DATA
Width (flaps and batten slat included): From 500 to 10,000 mm
(3,500 per pivoting leaf)
Height (top and bottom rail included): From 800 to 3,000 mm
All other dimensions on request
CURTAIN
In one or two, fixed or pivoting, door leaves. On fixed bottom rail, liftable or removable (7 m² maximum per pivoting leaf)
U-shaped vertical bars connected to each other by articulated hinges
All in 275 g/m² galvanised steel
Thickness 20/10th
LOCKING
Lock with 2 anchoring points
Option: anchor loop with armoured padlock
OPERATION
Manual
