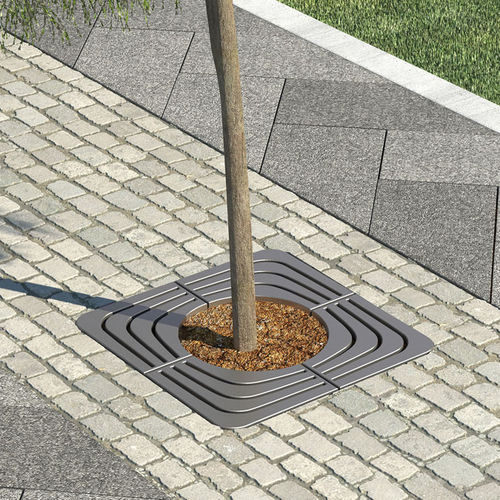

Square tree grate LAB.SP.003
steelgalvanized steel

square tree grate
square tree grate
square tree grate
Add to favorites
Compare this product

Characteristics

Shape
square
Material
steel, galvanized steel

Description

The tree grilles LAB SP are made in steel. Different patterns and dimensions are available with the laser-cut. The smaller tree grilles, LAB SP. 735Mm, are made of 4 elements: two shaping the grille and two shaping the perimetral frame. The grilles LAB SP. 990Mm are made of 6 elements: the upper grille is divided into 4 parts and the frame into 2 parts. The bigger grilles LAB SP are made of 8 elements: both the upper grille and the frame are devided into 4 parts. The upper part of the grilles is the result of laser-cut steel sheets (50/10 thickness), whereas the frame is made in steel sheet, 30/10 thickness. If present, the frame is fixed to the ground through specific bolts (not provided) to be inserted on elements 12×18 mm. The tree grilles are fixed to the ground (or to the frame if present) through specific countersunk holes M6. Steel EN10111DD11 is used for the realization of this product and all the elements in this material, after all the different stages (cutting, bending, welding), are treated with electrogalvanizing according to the UNI regulations and are later polyester powder-coated with RAL colours at choice.
