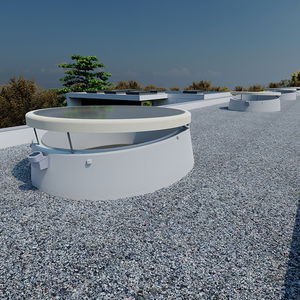

Flat roof skylight FE 3°
for ventilationfor building renovationdouble-glazed

flat roof skylight
flat roof skylight
flat roof skylight
flat roof skylight
flat roof skylight
flat roof skylight
flat roof skylight
Add to favorites
Compare this product


Characteristics

Applications
flat roof
Attributes
for ventilation
Options
for building renovation, double-glazed
Frame characteristics
with skylight frame
Material
glass, aluminium

Description

Optimal thermal insulation thanks to overall structure free of thermal bridges Intelligent controls for natural ventilation and sun protection blinds Optimised soundproofing and minimised rain noise Tightness against driving rain as per DIN EN 1027 = E (1950) Permeability to air in line with DIN EN 1026 = Class 4 Resistance against wind load in line with DIN EN 12211 = C5 Life-cycle assessment made easy: A comprehensive environmental declaration as per DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and DIN EN ISO 14025 is available for the LAMILUX Glass Skylight FE 3° Uniform appearance Aesthetic, classical and elegant design language Stepless transition between frame profile and glazing Unobstructed drainage of water and dirt thanks to the element's 3° inclination Award winning design Approved fall-through protection as per DIN 18008-6 Resistance to external fire exposure from flying sparks and radiating heat with classification B, roof (t1) as per DIN EN 13501-5 High hail resistance thanks to TSG outer pane as a standard feature Our LAMILUX Glass Skylight FE 3° is BIMready – Download at bimobjects.com Fully pre-assembled delivery of the element to the construction site Simple installation Efficient maintenance Our range of glazing takes into account different aspects on an individual basis Incidence of daylight – Transparency and light diffusion Energy efficiency/thermal insulation Sun protection/protection against heat Sound insulation Self-cleaning Permanently fall-through proof
