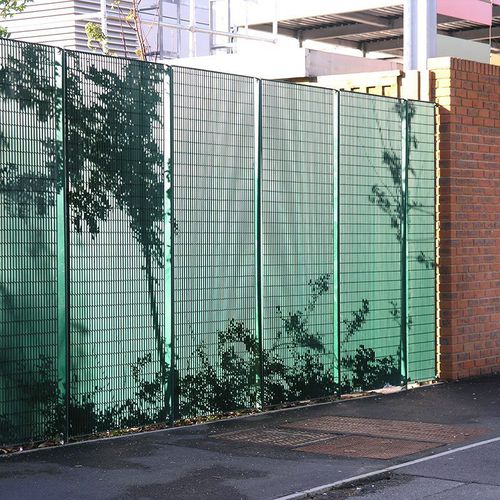

Metal grid fencing STANDARD : NOVARA-25

for public spacesgalvanized steelmodular

Novara-25 has the narrowest aperture of all the grating fences. This delivers excellent anti-climb properties, which comply with NHBS guidelines, for schools, colleges and residential environments. In addition, the 1270mm panel width provides exceptional rigidity. Standard panels are framed to include a bent over lug for fixing to an RHS or flat bar post. An RHS with welded tabs or an I-post can be used to reduce the gap between panel and post for increased safety and security. Mesh (c/c): 25×76 mm Standard Panel Heights: 995, 1147, 1451, 1831, 1983, 2439, 2667, 2971 mm Standard Panel Width: 1270 mm RHS Post: 50×30, 60×40, 80×40, 100×50 mm (depending on height) In addition to the standard panel, a narrow width closing panel will be provided to suit the end of a fence run. Novara-25 fences can also be customised to feature curved or waved tops, decorative rails and finials, ornamental or laser-cut motifs. Swing-hinged single or double leaf, bi-folding, pivot and sliding gates are made with matching infill panels and optional entry/exit controls for restricted access. Novara-25 fencing is supplied hot-dip galvanized with an optional polyester powder coating in any RAL colour. All grating fences are made in compliance with BS 1722-14.
